From Start to Finish: How a High Speed Tablet Press Machine Works

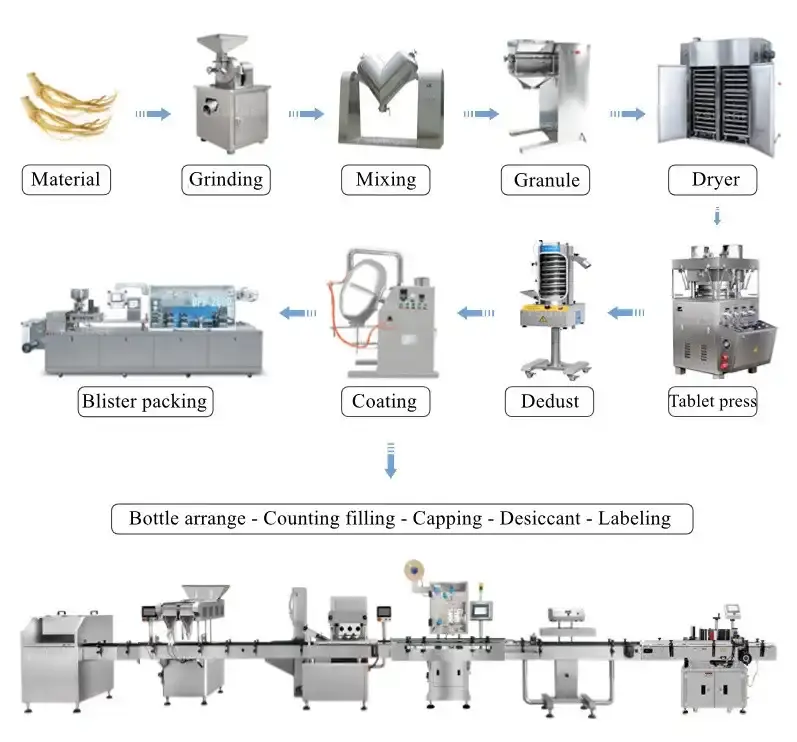

The pharmaceutical and nutraceutical industries rely heavily on sophisticated manufacturing equipment to produce consistent, high-quality tablets at scale. Understanding how a high speed tablet press machine operates from beginning to end is crucial for manufacturers seeking to optimize their production processes. These advanced machines transform raw powder materials into precisely formed tablets through a carefully orchestrated series of mechanical operations. Modern high speed tablet press machines, such as the ZP420-25D rotary tablet press, represent the pinnacle of tablet manufacturing technology, combining precision engineering with exceptional productivity to meet the demanding requirements of today's pharmaceutical landscape.
The Complete Tablet Pressing Workflow
Material Preparation and Feeding System
The journey of tablet production begins with the critical material preparation phase, where raw pharmaceutical powders undergo careful processing before entering the high speed tablet press machine. The feeding system represents the foundation of efficient tablet production, as it ensures consistent material flow and uniform distribution throughout the pressing cycle. Advanced rotary tablet presses like the ZP420-25D incorporate sophisticated feeding mechanisms that utilize spiral blade technology to transport materials with remarkable precision. The feeding hopper receives the pre-blended pharmaceutical powders, which have been carefully formulated to achieve optimal compression characteristics and ensure therapeutic efficacy.During this initial stage, the high speed tablet press machine employs force-feeding mechanisms that actively transport materials along designated feeding tracks. This forced transportation system eliminates common issues associated with gravity-fed systems, such as material bridging and inconsistent flow rates. The ZP420-25D's feeding system demonstrates exceptional reliability, capable of handling output capacities of up to 120,000 pieces per hour while maintaining consistent material distribution across all 25 punches. The precision engineering of this feeding system ensures that each die cavity receives the exact amount of material required for uniform tablet formation, contributing significantly to the overall quality and consistency of the final product.The material feeding process also incorporates advanced monitoring systems that continuously assess powder flow characteristics and detect potential irregularities before they impact production quality. Modern high speed tablet press machine designs feature adjustable feeding parameters that can be optimized for different powder formulations, ensuring optimal performance across a wide range of pharmaceutical and nutraceutical applications. The ZP420-25D's feeding system exemplifies this versatility, accommodating tablet weights ranging from 0.1g to 100g while maintaining exceptional accuracy and repeatability throughout extended production runs.
Precision Die Filling and Weight Control
Following the material preparation phase, the high speed tablet press machine enters the critical die filling stage, where precise weight control determines the final tablet characteristics. The rotary turntable system plays a pivotal role in this process, carrying multiple die cavities through carefully timed filling operations. As the turntable rotates, each die cavity passes beneath the feeding mechanism, receiving a predetermined quantity of powder material based on the desired tablet specifications. The ZP420-25D's 25-punch configuration allows for continuous filling operations, maximizing throughput while maintaining exceptional accuracy in weight control.The die filling process in a modern high speed tablet press machine involves sophisticated weight adjustment mechanisms that can be fine-tuned to achieve precise tablet weights. These systems utilize adjustable fill depths and compression ratios to accommodate various powder characteristics and tablet formulations. The ZP420-25D demonstrates exceptional capability in this regard, handling tablet diameters up to 25mm while maintaining weight consistency within tight tolerances. This precision is particularly crucial in pharmaceutical applications where dosage accuracy directly impacts therapeutic effectiveness and regulatory compliance.Advanced high speed tablet press machine designs incorporate real-time monitoring systems that continuously assess die filling performance and automatically adjust parameters to maintain optimal weight control. The ZP420-25D features integrated sensors that monitor powder flow rates, die cavity fill levels, and compression parameters throughout the production cycle. This continuous monitoring capability enables operators to detect and correct potential issues before they impact product quality, ensuring consistent tablet production even during extended manufacturing runs. The machine's ability to maintain precise weight control while operating at high speeds makes it an invaluable asset for pharmaceutical manufacturers seeking to optimize both quality and productivity.
Turntable Rotation and Timing Mechanisms
The heart of any high speed tablet press machine lies in its precisely engineered turntable rotation system, which orchestrates the complex dance of die filling, compression, and tablet ejection. The ZP420-25D's turntable system represents a masterpiece of mechanical engineering, incorporating precision bearings and drive mechanisms that ensure smooth, consistent rotation even under high compression loads. The turntable's rotation speed is carefully calibrated to optimize throughput while allowing sufficient time for each operational phase, from initial die filling through final tablet ejection.Timing mechanisms within the high speed tablet press machine coordinate the movement of multiple punches and cams to ensure perfect synchronization throughout the pressing cycle. The ZP420-25D utilizes advanced cam systems that control both upper and lower punch movements with remarkable precision, ensuring consistent compression force application across all 25 stations. This sophisticated timing system enables the machine to achieve its impressive output capacity of 120,000 pieces per hour while maintaining exceptional tablet quality and uniformity. The precision of these timing mechanisms is particularly critical when producing double-color tablets, where exact timing ensures proper material distribution and color separation.The turntable rotation system in modern high speed tablet press machine designs incorporates advanced vibration dampening technologies that minimize mechanical stress and reduce wear on critical components. The ZP420-25D's robust construction, weighing 1700kg, provides exceptional stability during high-speed operations, ensuring consistent tablet quality even under demanding production conditions. The machine's sophisticated control systems continuously monitor turntable rotation speed and automatically adjust parameters to maintain optimal performance, contributing to extended equipment life and reduced maintenance requirements.
Advanced Compression Technology
Upper and Lower Punch Coordination
The compression phase represents the most critical aspect of high speed tablet press machine operation, where coordinated punch movements transform loose powder into solid, uniform tablets. The ZP420-25D's dual-punch system demonstrates exceptional precision in coordinating upper and lower punch movements through sophisticated cam mechanisms. As die cavities containing pre-measured powder quantities rotate into the compression zone, the upper punches descend under precise cam control while lower punches simultaneously ascend, creating the compression force necessary for tablet formation.The high speed tablet press machine achieves remarkable compression consistency through carefully engineered punch coordination systems that ensure uniform force application across all stations. The ZP420-25D's maximum pressure capability of 100 kN provides sufficient force for compressing even challenging formulations while maintaining tablet integrity and preventing capping or lamination issues. This high compression force capability makes the machine particularly suitable for producing dense tablets required in pharmaceutical applications where controlled drug release profiles are essential.Advanced punch coordination in modern high speed tablet press machine designs incorporates real-time force monitoring systems that continuously assess compression parameters and automatically adjust punch positions to maintain optimal tablet characteristics. The ZP420-25D features sophisticated pressure control systems that can be programmed for different tablet formulations, ensuring consistent compression regardless of powder characteristics or environmental conditions. This automated control capability significantly reduces operator intervention requirements while maintaining exceptional tablet quality throughout extended production runs.
Pressure Regulation and Force Distribution
Precise pressure regulation represents a fundamental requirement for successful high speed tablet press machine operation, as compression force directly impacts tablet hardness, dissolution characteristics, and overall quality. The ZP420-25D incorporates advanced pressure regulation systems that provide exceptional control over compression forces, enabling operators to optimize tablet characteristics for specific pharmaceutical applications. The machine's ability to handle maximum pressures up to 100 kN while maintaining precise force distribution across all 25 punches demonstrates the sophisticated engineering underlying modern tablet press technology.Force distribution uniformity in high speed tablet press machine applications requires careful attention to mechanical tolerances and component alignment throughout the compression system. The ZP420-25D's precision manufacturing ensures consistent punch alignment and uniform force transmission, resulting in tablets with exceptional weight and hardness uniformity. This consistency is particularly important in pharmaceutical manufacturing where regulatory requirements demand strict adherence to quality specifications and batch-to-batch reproducibility.Modern high speed tablet press machine designs incorporate sophisticated feedback control systems that continuously monitor compression forces and automatically adjust parameters to maintain optimal tablet characteristics. The ZP420-25D features integrated force sensors that provide real-time compression data, enabling operators to fine-tune production parameters and detect potential issues before they impact product quality. This advanced monitoring capability ensures consistent tablet production while minimizing material waste and reducing the need for manual quality control interventions.
Tablet Formation and Density Control
The tablet formation process in a high speed tablet press machine involves complex interactions between compression force, dwell time, and powder characteristics that determine final tablet properties. The ZP420-25D's sophisticated compression system provides precise control over these critical parameters, enabling manufacturers to produce tablets with consistent density and mechanical properties. The machine's ability to handle tablet weights ranging from 0.1g to 100g demonstrates exceptional versatility in accommodating diverse pharmaceutical and nutraceutical formulations.Density control in modern high speed tablet press machine applications requires careful optimization of compression parameters to achieve desired tablet characteristics while avoiding common defects such as capping, lamination, or excessive hardness. The ZP420-25D incorporates advanced density control mechanisms that automatically adjust compression parameters based on powder characteristics and desired tablet specifications. This automated control capability ensures consistent tablet density throughout production runs while minimizing the need for manual adjustments and reducing operator training requirements.The high speed tablet press machine achieves exceptional tablet formation consistency through precise control of compression dwell time, which determines the duration of maximum pressure application during the pressing cycle. The ZP420-25D's optimized cam profiles provide controlled dwell time characteristics that ensure adequate powder consolidation while maintaining high production speeds. This careful balance between compression time and throughput enables the machine to produce high-quality tablets at impressive production rates while maintaining exceptional batch-to-batch consistency.
Quality Control and Output Management
Tablet Ejection and Collection Systems
The final phase of high speed tablet press machine operation involves precise tablet ejection and collection systems that ensure product integrity while maintaining high throughput rates. The ZP420-25D's ejection system utilizes sophisticated cam mechanisms that coordinate lower punch movements to smoothly eject completed tablets from die cavities. This controlled ejection process prevents tablet damage while ensuring consistent product flow to downstream collection and packaging systems.Modern high speed tablet press machine designs incorporate advanced collection systems that handle high-volume tablet production while maintaining product quality and preventing cross-contamination. The ZP420-25D's collection system demonstrates exceptional capability in managing the machine's impressive output of 120,000 pieces per hour, ensuring smooth product flow without bottlenecks or quality issues. The system's design minimizes tablet handling stress while providing clear separation between acceptable products and potential rejects identified by quality control systems.The tablet ejection process in advanced high speed tablet press machine applications requires precise timing coordination to ensure smooth product flow and prevent mechanical damage. The ZP420-25D's ejection system incorporates vibration dampening technologies that minimize impact forces during tablet discharge, preserving tablet integrity and reducing the potential for chipping or breaking. This careful attention to product handling demonstrates the sophisticated engineering underlying modern tablet press technology and contributes significantly to overall production efficiency and quality.
Real-time Quality Monitoring
Contemporary high speed tablet press machine systems incorporate sophisticated quality monitoring technologies that provide continuous assessment of tablet characteristics throughout the production process. The ZP420-25D features integrated monitoring systems that evaluate tablet weight, thickness, hardness, and visual appearance in real-time, enabling immediate detection and correction of quality deviations. This continuous monitoring capability ensures consistent product quality while minimizing material waste and reducing the need for extensive offline quality control testing.Advanced quality monitoring in high speed tablet press machine applications utilizes multiple sensor technologies to assess various tablet characteristics simultaneously. The ZP420-25D's monitoring systems provide comprehensive quality data that enables operators to optimize production parameters and maintain tight quality control throughout extended manufacturing runs. This real-time feedback capability is particularly valuable in pharmaceutical manufacturing where regulatory compliance requires extensive documentation of quality parameters and process controls.The integration of quality monitoring systems in modern high speed tablet press machine designs enables automatic rejection of non-conforming products while maintaining high production throughput. The ZP420-25D incorporates automated rejection systems that remove defective tablets without interrupting the main production flow, ensuring consistent product quality while maximizing overall equipment effectiveness. This automated quality control capability reduces labor requirements while providing enhanced assurance of product conformity to specifications.
Production Optimization and Efficiency
Production optimization in high speed tablet press machine applications requires careful balance between throughput, quality, and equipment longevity to maximize overall manufacturing effectiveness. The ZP420-25D demonstrates exceptional optimization potential through its combination of high-speed operation, precise quality control, and robust mechanical design. The machine's ability to maintain consistent output of 120,000 pieces per hour while preserving tablet quality represents the pinnacle of modern tablet press technology and manufacturing efficiency.Efficiency optimization in modern high speed tablet press machine systems involves sophisticated process control algorithms that continuously adjust operational parameters based on real-time production data. The ZP420-25D incorporates advanced control systems that optimize compression forces, turntable speeds, and material flow rates to maximize throughput while maintaining quality specifications. This intelligent process control capability enables manufacturers to achieve optimal production efficiency while minimizing material waste and reducing operational costs.The high speed tablet press machine achieves exceptional production efficiency through integration of automated systems that minimize manual intervention requirements while maintaining strict quality control. The ZP420-25D's automated systems handle material feeding, compression control, quality monitoring, and product collection with minimal operator oversight, enabling continuous production runs with consistent quality output. This high level of automation contributes significantly to overall manufacturing productivity while reducing labor costs and improving product consistency.
Conclusion
The operation of a high speed tablet press machine represents a sophisticated integration of mechanical engineering, process control, and quality assurance technologies that transform raw materials into precise pharmaceutical products. From initial material feeding through final tablet collection, modern machines like the ZP420-25D demonstrate exceptional capability in producing high-quality tablets at impressive production rates while maintaining strict quality standards throughout the manufacturing process.
Ready to revolutionize your tablet production capabilities? As a leading China high speed tablet press machine manufacturer and China high speed tablet press machine supplier, Factop offers comprehensive solutions for pharmaceutical and nutraceutical manufacturers worldwide. Our wholesale high speed tablet press machine options provide exceptional value, while our China high speed tablet press machine factory ensures consistent quality and reliable delivery. contact us today to discover competitive high speed tablet press machine price options and explore our complete range of high speed tablet press machine for sale. Reach out to michelle@factopintl.com to discuss your specific requirements and experience the Factop difference in pharmaceutical manufacturing excellence.
