How do single-station tablet presses operate?
Single-station tablet presses represent an essential piece of equipment in the pharmaceutical, food processing, and chemical industries. These compact yet powerful machines transform powdered or granulated materials into precisely formed tablets through a systematic mechanical process. The Single station tablet press operates on a straightforward principle of compression, where material is fed into a die cavity and compressed between two punches to form a solid tablet. Understanding the intricate operation of these machines provides valuable insights for manufacturers seeking efficient, reliable tablet production solutions for laboratory, research, or small-batch production environments.
The Mechanical Principles of Single-Station Tablet Presses
The single-station tablet press functions through a precise mechanical process that ensures consistent tablet production. Let's explore the core mechanical principles that drive these machines.
The Compression Cycle Process
The compression cycle in a Single station tablet press follows a systematic sequence that begins with die filling and concludes with tablet ejection. Initially, the feed shoe containing the powder or granulated material moves over the die cavity, allowing the material to fill the space under gravity. The amount of material that enters the die is precisely controlled by the fill depth adjustment, which directly impacts the tablet weight. Once filled, the feed shoe retracts, allowing the upper punch to descend into the die. The upper and lower punches then apply significant pressure to the material—up to 50 kN in models like the DP50 Single station tablet press—compacting the loose powder into a solid form. This compression phase is critical as it determines the tablet's hardness, dissolution properties, and overall integrity. After compression, the upper punch withdraws, and the lower punch rises to eject the newly formed tablet from the die cavity. This complete cycle can produce up to 3600 tablets per hour, making it an efficient solution for small to medium production requirements. The entire process is carefully calibrated to ensure uniform tablet weight, thickness, and hardness, meeting pharmaceutical and regulatory standards.
Key Components and Their Functions

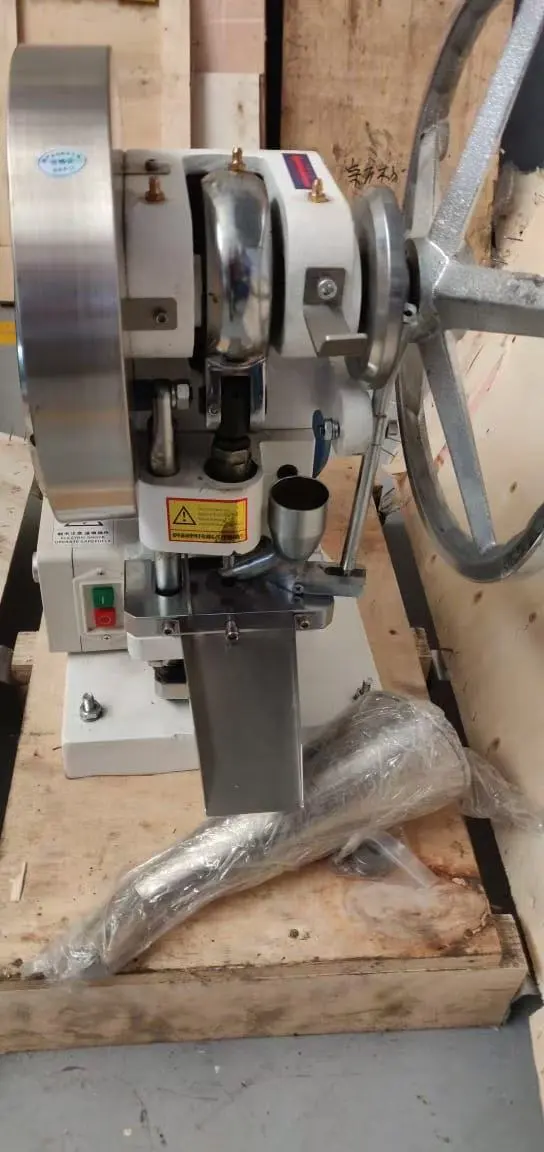

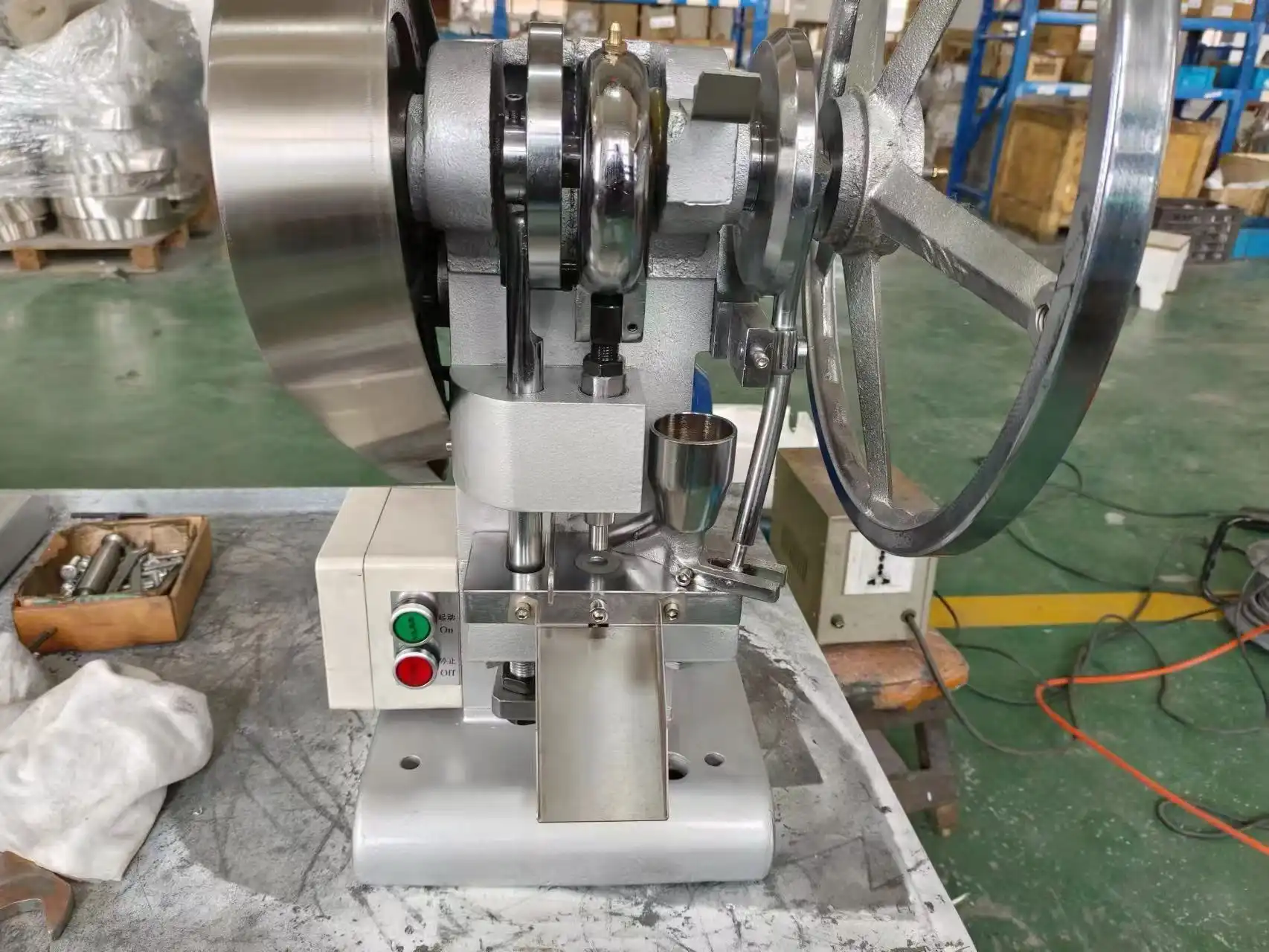

The Single station tablet press comprises several crucial components that work in harmony to ensure precise tablet formation. The die is a hardened steel cylinder with a polished internal bore that serves as the chamber where compression occurs. The die dimensions directly determine the tablet diameter, which can reach up to 25 mm in models like the DP50. The upper and lower punches are precision-engineered steel rods with specially designed tips that apply compression force to the material and shape the tablet faces. These punches move vertically within the machine through cam-driven mechanisms that precisely control their movements during each phase of the compression cycle. The feed shoe is a sliding component that moves horizontally across the die table, delivering powder to the die cavity during the filling phase. Additionally, the force feeder helps break up powder agglomerations and ensures consistent die filling. The DP50 Single station tablet press also features adjustable fill depth mechanisms (up to 20 mm) that control the amount of material entering the die, directly affecting tablet weight and thickness. The entire system is powered by a 1.5 kW motor housed within a stainless steel 304 frame that measures 580500830 mm and weighs approximately 250 kg, providing a sturdy platform that minimizes vibration during operation for maximum precision.
Control Systems and Adjustments
Modern Single station tablet press machines incorporate sophisticated control systems that enable precise adjustments to achieve optimal tablet quality. The fill depth adjustment mechanism allows operators to modify the amount of material entering the die cavity, effectively controlling tablet weight with high precision. This adjustment is particularly critical when working with expensive active pharmaceutical ingredients where material conservation is essential. The compression force adjustment permits fine-tuning of the pressure applied during the compression phase, directly influencing tablet hardness and disintegration characteristics—essential parameters for pharmaceutical products. Most contemporary models, including the DP50 Single station tablet press, feature user-friendly interfaces that allow operators to adjust tablet thickness (up to 8 mm) and monitor production parameters in real-time, ensuring consistent quality throughout the production run. These machines also incorporate safety features such as emergency stop buttons, overload protection systems, and safety interlocks that prevent operation when guards are open, protecting both operators and equipment. Advanced models may include force monitoring systems that measure and display compression forces during each cycle, helping technicians optimize the tableting process for different formulations. The versatility of these control systems makes the Single station tablet press suitable for various industries, from pharmaceutical laboratories to food processing facilities, where precise tablet formation is paramount.
Performance and Production Capabilities
Understanding the production capabilities of single-station tablet presses helps manufacturers determine if these machines match their operational needs. Let's examine their performance characteristics in detail.
Output Capacity and Efficiency Factors
The Single station tablet press demonstrates remarkable efficiency despite its compact footprint. With production capabilities reaching up to 3600 tablets per hour, these machines deliver substantial output for laboratory and small-scale production environments. Several factors influence this output capacity, including material flow properties, tablet size, and compression requirements. Free-flowing granules typically process faster than cohesive powders, which may require additional feeder mechanisms to ensure consistent die filling. The tablet size and thickness also impact production rates—smaller tablets generally allow for faster production cycles compared to larger, thicker tablets that require more material and higher compression forces. The DP50 Single station tablet press achieves this efficiency through its optimized cam profile design, which ensures smooth punch movements while minimizing wear on mechanical components. The high material utilization ratio is another significant efficiency factor, reducing waste during production—a critical consideration when working with expensive pharmaceutical ingredients. Additionally, the machine's energy efficiency is noteworthy, requiring only 1.5 kW of power while delivering impressive compression forces of up to 50 kN. This balance of power consumption and output makes the Single station tablet press an economical choice for organizations seeking cost-effective tablet production solutions without sacrificing quality or precision.
Tablet Size, Shape, and Customization Options
One of the most valuable features of the Single station tablet press is its versatility in producing tablets of various sizes, shapes, and designs. The DP50 model accommodates tablets with diameters up to 25 mm and thicknesses up to 8 mm, covering most standard tablet dimensions required in pharmaceutical, nutritional supplement, and chemical applications. Beyond basic round tablets, these machines can produce a wide array of shapes including oval, capsule-shaped, square, triangular, and custom-designed forms, depending on the punch and die sets installed. This customization capability extends to tablet surface features as well, where various embossing options, score lines, and unique identifiers can be incorporated into the tablet design. The tablet weight can be precisely controlled through the adjustable fill depth mechanism, which allows for a maximum filling depth of 20 mm. This flexibility makes the Single station tablet press suitable for diverse applications ranging from pharmaceutical dosage forms to industrial chemical tablets. For manufacturers requiring brand identification, the punches can be custom-engraved to imprint logos, text, or specific patterns onto the tablet surface during compression. Factop Pharmacy Machinery Trade Co., Ltd. offers customization services for these tooling components, allowing clients to create unique tablet designs that enhance product recognition and prevent counterfeiting—a significant concern in pharmaceutical markets worldwide.
Material Compatibility and Versatility
The Single station tablet press demonstrates exceptional versatility in handling various materials across multiple industries. In pharmaceutical applications, it efficiently processes active pharmaceutical ingredients, excipients, and formulation blends with different flow properties and compression characteristics. The machine's adjustable compression force (up to 50 kN) accommodates materials requiring light compression, such as effervescent formulations, as well as those needing substantial pressure, like certain sustained-release formulations. In the food processing sector, the Single station tablet press proves invaluable for producing candy tablets, milk tablets, and throat lozenges, where precise weight control and aesthetic appearance are paramount. Health supplement manufacturers benefit from its ability to compress vitamin formulations, calcium tablets, and herbal extracts—materials that often present unique challenges due to their variable flow properties and sensitivity to compression forces. The machine's stainless steel 304 construction provides excellent chemical resistance, making it suitable for chemical industry applications such as fertilizer tablets, cleaning product tablets, and camphor balls. This material compatibility extends to more specialized applications in the electronics industry, where the Single station tablet press is used to form electronic components from conductive powders. For laboratory and research settings, the versatility of the DP50 Single station tablet press is particularly valuable, allowing scientists to experiment with small batches of various formulations without the material waste associated with larger production equipment.
Practical Applications and Industry Uses
The versatility of single-station tablet presses makes them valuable across various industries. Let's examine their real-world applications and benefits.
Pharmaceutical Research and Development
In pharmaceutical research and development environments, the Single station tablet press serves as an indispensable tool for formulation development and small-scale clinical trial batch production. R&D scientists utilize these machines to study the compressibility and tabletability of new drug formulations, optimizing ingredients and their ratios before scaling up to commercial production. The precise control offered by models like the DP50 Single station tablet press allows researchers to investigate critical parameters such as compression force, speed, and dwell time on tablet quality attributes including hardness, disintegration, dissolution, and friability. This data proves invaluable in establishing design spaces for robust formulations and defining critical process parameters. With a maximum tablet pressure of 50 kN, researchers can evaluate a wide range of compression profiles, while the adjustable fill depth (up to 20 mm) enables exploration of different tablet weights and thicknesses (up to 8 mm). The machine's relatively small material requirement for each experimental batch—a consequence of its 3600 tablets per hour capacity—makes it economically feasible to conduct extensive design of experiments (DOE) studies even with expensive active pharmaceutical ingredients. Additionally, the stainless steel 304 construction meets pharmaceutical industry cleanliness standards, minimizing cross-contamination risks between different formulation trials. The compact dimensions (580500830 mm) and moderate weight (250 kg) of the DP50 Single station tablet press make it suitable for laboratory environments where space is often limited but experimental rigor is essential.
Small-Batch Production and Specialized Manufacturing
The Single station tablet press excels in small-batch production scenarios where flexibility and quick changeover capabilities are paramount. In specialty pharmaceutical manufacturing, where production runs might involve orphan drugs or personalized medicine applications, these machines provide an economically viable solution that minimizes material waste while maintaining GMP compliance. The DP50 Single station tablet press, with its output capacity of 3600 tablets per hour, strikes an ideal balance for productions that exceed laboratory scale but don't warrant investment in high-speed rotary presses. This makes it particularly valuable for contract manufacturing organizations (CMOs) that handle diverse product portfolios with varying batch sizes. In the nutraceutical and dietary supplement industry, where product formulations frequently change in response to market trends, the Single station tablet press offers the versatility needed to efficiently produce small batches of different formulations without extensive downtime between changeovers. The machine's ability to accommodate tablets up to 25 mm in diameter and 8 mm in thickness covers most supplement tablet specifications, from multivitamins to herbal extracts. Similarly, in the chemical industry, specialized applications such as water treatment tablets, analytical reagents, and diagnostic test components benefit from the precision and flexibility of these machines. The reasonable investment cost and compact footprint (580500830 mm) of the DP50 Single station tablet press make it accessible for startups and small enterprises looking to bring tableted products to market without the capital expenditure associated with larger industrial equipment.
Quality Control and Testing Applications
In quality control laboratories, the Single station tablet press serves as a crucial instrument for ensuring tablet formulations meet stringent regulatory standards before full-scale production. Quality assurance technicians utilize these machines to produce small sample batches from each production lot of raw materials, verifying that the incoming ingredients maintain consistent compressibility characteristics. The precise control offered by the DP50 Single station tablet press—with its adjustable fill depth up to 20 mm and maximum tablet pressure of 50 kN—allows for the reproduction of production-scale compression conditions in a laboratory setting. This capability proves invaluable for troubleshooting quality issues that may arise during large-scale manufacturing, as technicians can systematically vary compression parameters to identify root causes of defects such as capping, lamination, or sticking. The machine's stainless steel 304 construction facilitates thorough cleaning between different material tests, preventing cross-contamination that could skew analytical results. For pharmaceutical companies developing abbreviated new drug applications (ANDAs) or generic equivalents, the Single station tablet press enables the production of test batches that must demonstrate bioequivalence to reference listed drugs. Additionally, research institutions leverage these machines for stability studies, producing consistent tablet samples that undergo accelerated aging tests to establish shelf-life and storage recommendations. With dimensions of 580500830 mm and weighing 250 kg, the DP50 model fits comfortably within most quality control laboratories while providing the robust performance necessary for critical testing applications.
Conclusion
The Single station tablet press represents an essential tool for pharmaceutical, food, chemical, and research industries requiring precise, reliable tablet production. With models like the DP50 offering impressive capabilities—50 kN pressure, 25 mm maximum diameter, and 3600 tablets per hour output—these machines deliver professional-grade performance in a compact package. Their versatility, precision, and GMP compliance make them ideal for various applications from R&D to small-batch production.
