How does a bilayer tablet press differ from a standard tablet press?
The fundamental distinction between bilayer tablet presses and standard tablet presses lies in their ability to produce tablets with multiple layers. While standard tablet presses compress powder into a single homogeneous tablet, bilayer tablet presses are specifically engineered to create tablets containing two distinct layers of different formulations. This advanced capability enables pharmaceutical manufacturers to combine multiple active ingredients in a single dosage form, control release profiles, and develop innovative drug delivery systems. The bilayer tablet press achieves this through a sophisticated two-step compression process, utilizing separate filling stations and specialized compression mechanisms to ensure precise layer formation and optimal tablet integrity.
Technical Innovations in Bilayer Tablet Press Design
Advanced Compression Mechanisms
The bilayer tablet press incorporates sophisticated dual compression technology that sets it apart from conventional tablet presses. The GZP500 series, with its impressive 120KN pressure capability and precise 15mm filling depth, exemplifies the advanced engineering in modern bilayer presses. These machines utilize a sequential compression approach where the first layer is pre-compressed at a lower force to create a stable foundation, followed by the final compression of both layers together. This two-stage compression process is crucial for preventing layer separation and ensuring consistent tablet quality. The sophisticated control systems monitor and adjust compression forces in real-time, maintaining optimal pressure distribution across both layers while accommodating different powder properties and compression characteristics.
Automated Layer Control Systems
Modern bilayer tablet presses feature advanced automation systems that precisely control layer thickness and uniformity. With a maximum press diameter of 50mm and rotation speed of 25rpm, machines like the GZP500 series can maintain exceptional accuracy in layer formation. The automated systems employ advanced sensors and feedback mechanisms to monitor critical parameters such as powder flow, compression force, and layer thickness in real-time. These systems automatically adjust filling depths and compression forces to compensate for variations in powder properties, ensuring consistent layer ratios and tablet quality throughout the production run. The integration of sophisticated control algorithms enables rapid response to process variations, minimizing waste and maximizing production efficiency.
Material Handling Innovations

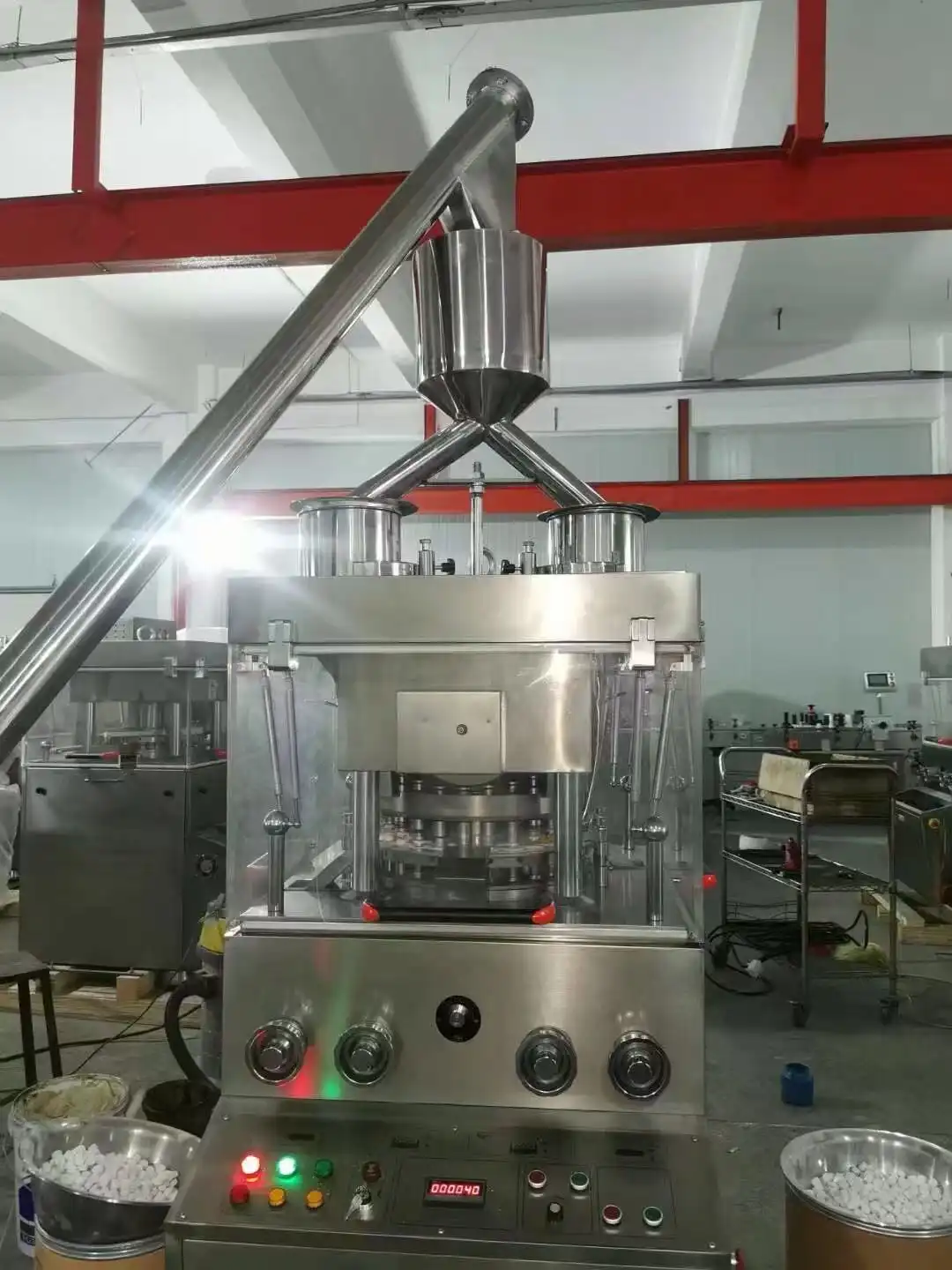

The evolution of bilayer tablet press technology has brought significant improvements in material handling capabilities. Advanced powder feeding systems utilize precision-engineered force feeders and specialized die-filling mechanisms to ensure uniform powder distribution for each layer. The design incorporates separate powder hoppers and feed frames for each layer, preventing cross-contamination while maintaining consistent powder flow. Advanced anti-static systems and powder conditioning mechanisms help optimize powder flowability and prevent common issues such as sticking and picking. The integration of automated cleaning systems and quick-change components facilitates rapid product changeovers while maintaining GMP compliance.
Production Process Optimization
Layer Interface Control
The success of bilayer tablet production heavily depends on achieving optimal interface characteristics between layers. The bilayer tablet press employs specialized compression algorithms that carefully control the interface formation process. During the first layer compression, the machine creates a specifically textured surface that promotes mechanical interlocking with the second layer. The GZP500 series utilizes precise pressure control systems to maintain optimal interfacial bonding while preventing common issues such as delamination. Advanced monitoring systems continuously assess interface quality through parameters such as hardness distribution and layer adhesion strength, ensuring consistent product quality throughout the production run.
Quality Monitoring Systems
Modern bilayer tablet presses incorporate comprehensive quality monitoring systems that continuously evaluate critical quality attributes. These systems utilize advanced sensors and analytical tools to monitor tablet weight, hardness, thickness, and layer uniformity in real-time. The integration of smart technology enables automatic rejection of out-of-specification tablets while maintaining production efficiency. Quality monitoring extends to both individual layers and the final tablet, ensuring consistent product quality throughout the manufacturing process. The systems also generate detailed production data for regulatory compliance and process optimization purposes.
Process Parameter Optimization
Success in bilayer tablet production requires careful optimization of multiple process parameters. Advanced bilayer tablet presses feature sophisticated control systems that enable fine-tuning of compression forces, dwell times, and feed rates for each layer. The GZP500 series, with its 25rpm rotation speed and 120KN pressure capability, allows for precise adjustment of these parameters to accommodate different formulation requirements. The machines incorporate advanced algorithms that automatically optimize process parameters based on material properties and quality requirements, ensuring consistent product quality while maximizing production efficiency.
Manufacturing Efficiency and Quality Assurance
Production Speed Management
Efficient production speed management is crucial in bilayer tablet manufacturing. The bilayer tablet press incorporates advanced speed control systems that optimize production rates while maintaining product quality. With features like the 25rpm rotation speed of the GZP500 series, these machines achieve high throughput while ensuring adequate dwell time for proper compression of each layer. The sophisticated control systems automatically adjust production speeds based on material properties and quality requirements, preventing common issues such as capping and lamination while maximizing manufacturing efficiency.
Cross-Contamination Prevention
Modern bilayer tablet presses incorporate sophisticated design features to prevent cross-contamination between layers. The machines utilize separate powder handling systems, including dedicated hoppers, feed frames, and compression zones for each layer. Advanced cleaning systems and GMP-compliant designs facilitate thorough cleaning between production runs. The GZP500 series exemplifies these features with its specialized material handling components and easy-to-clean surfaces, ensuring product purity and regulatory compliance throughout the manufacturing process.
Maintenance and Validation
Ensuring optimal performance of bilayer tablet presses requires comprehensive maintenance and validation protocols. These machines incorporate advanced diagnostic systems that monitor critical components and alert operators to potential issues before they affect product quality. The GZP500 series features modular design elements that facilitate rapid maintenance and parts replacement while maintaining validation status. Regular calibration and qualification procedures ensure consistent performance and compliance with regulatory requirements throughout the equipment's lifecycle.
Conclusion
The fundamental differences between bilayer tablet presses and standard tablet presses extend far beyond basic compression capabilities. The sophisticated engineering, advanced control systems, and comprehensive quality monitoring features of modern bilayer presses enable pharmaceutical manufacturers to produce high-quality multilayer tablets efficiently and consistently.
Looking to revolutionize your tablet manufacturing capabilities? At Factop Pharmacy Machinery Trade Co., Ltd., we offer cutting-edge bilayer tablet press solutions backed by our experienced technical team and comprehensive support services. Our GMP-certified facilities and ISO9001:2015 certification ensure the highest quality standards. Contact us today at michelle@factopintl.com to discover how our advanced tablet press technology can transform your pharmaceutical manufacturing operations.
