How Does an Encapsulator Machine Function?
An encapsulator machine represents a sophisticated piece of pharmaceutical equipment designed to automate the precise filling of capsules with various pharmaceutical and nutraceutical formulations. These advanced systems combine mechanical precision with electronic control to deliver consistent, high-quality capsule production across multiple industries. The functionality of an encapsulator machine revolves around a series of synchronized operations that transform empty capsule shells into finished products containing accurate dosages of active ingredients. Understanding how these machines operate is crucial for pharmaceutical manufacturers, nutraceutical companies, and research institutions seeking to optimize their production processes while maintaining the highest standards of quality and compliance.
Core Operating Mechanisms of Encapsulator Machines
Capsule Separation and Orientation System

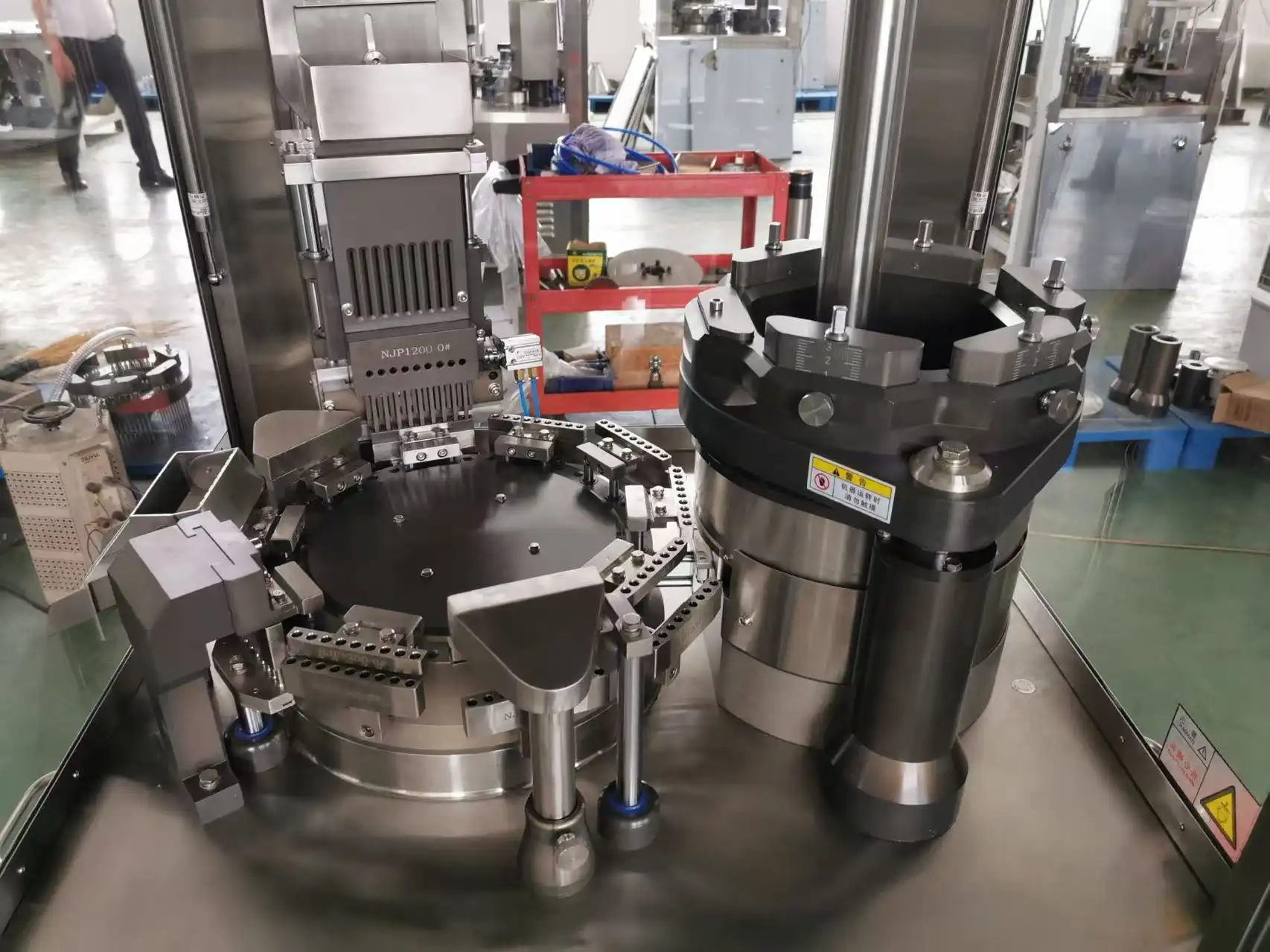

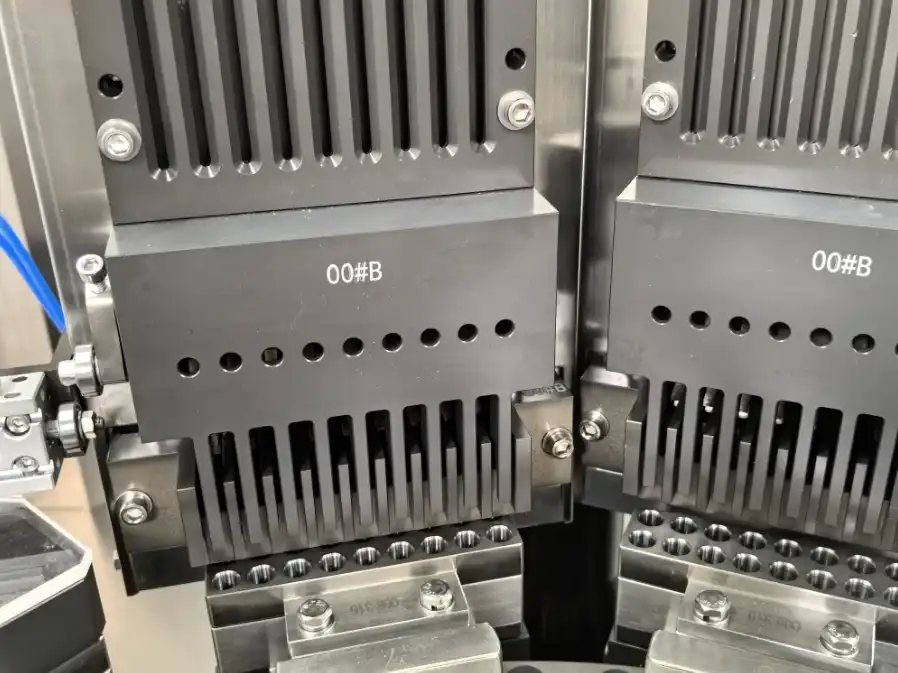

The capsule separation and orientation system forms the foundation of any high-performance encapsulator machine. This critical component begins the production process by automatically feeding empty capsules from bulk hoppers into precisely engineered conveying systems. The encapsulator machine utilizes vacuum technology and mechanical guides to separate individual capsules from bulk quantities, ensuring each capsule is properly oriented with the cap section facing upward. Advanced sensors monitor the capsule flow, detecting any misaligned or damaged capsules that could compromise the filling process. The separation mechanism operates at remarkable speeds, capable of handling hundreds of thousands of capsules per hour while maintaining perfect alignment. Modern encapsulator machines incorporate sophisticated sorting algorithms that can differentiate between various capsule sizes, from 00B# to 5#, automatically adjusting the mechanical parameters to accommodate different specifications. This automated orientation system eliminates manual handling, reducing contamination risks and significantly improving production efficiency compared to traditional manual filling methods.
Precision Filling Technology

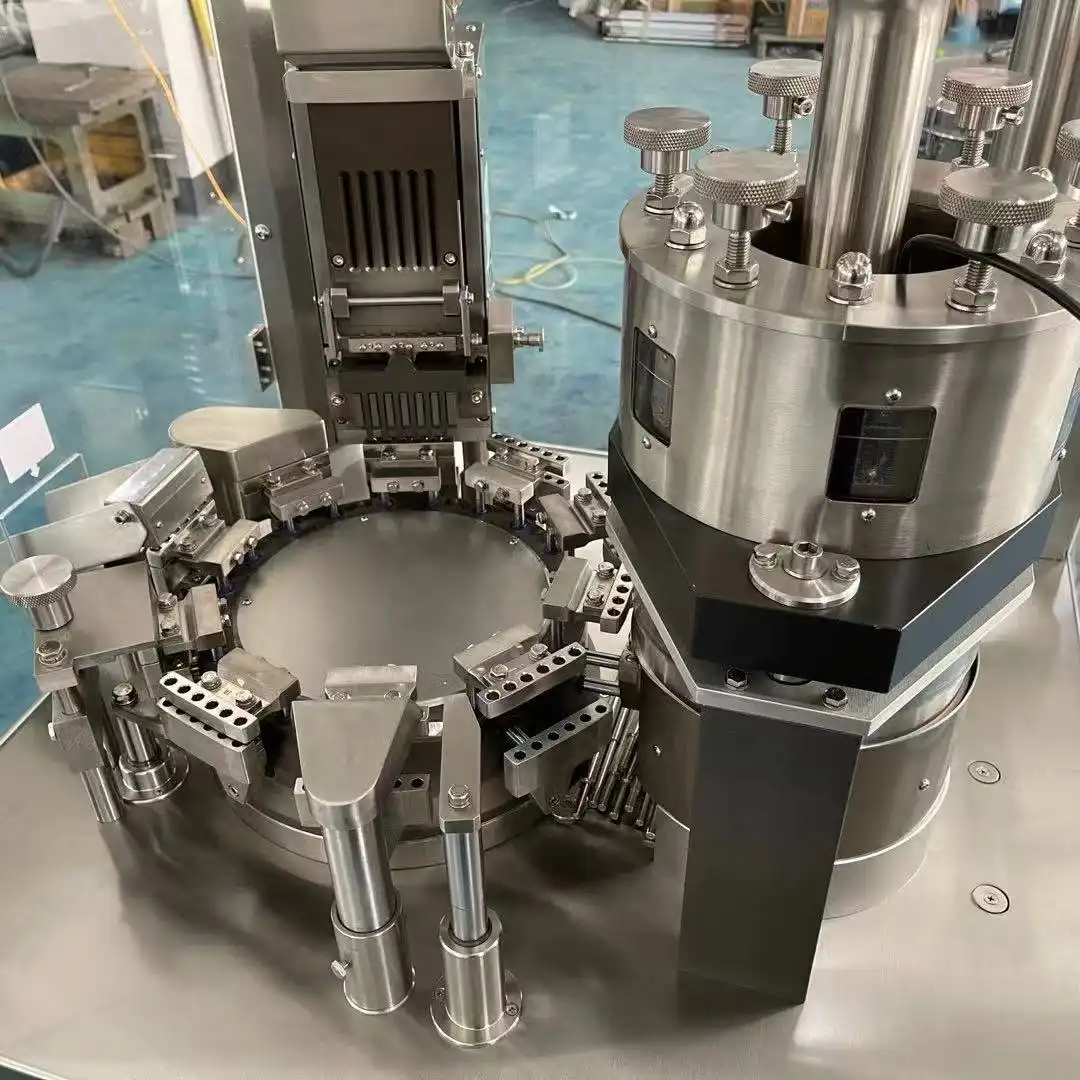

The precision filling technology employed in modern encapsulator machines represents the pinnacle of pharmaceutical manufacturing innovation. Each encapsulator machine incorporates multiple filling stations equipped with dosing discs that meter exact quantities of powder, granules, pellets, or tablet formulations into individual capsules. The filling mechanism utilizes weight-based control systems that can achieve filling accuracies of 3% for western medicines and 4% for traditional Chinese medicines. Advanced encapsulator machines feature tamping systems that compress the filled material to ensure optimal capsule capacity utilization while maintaining uniform density throughout each dose. The filling process is continuously monitored by load cells and electronic sensors that provide real-time feedback to the control system, automatically adjusting filling parameters to maintain consistent weight targets. Changeover between different products is streamlined through quick-change tooling systems, allowing operators to switch between formulations with minimal downtime. The precision filling technology ensures that each capsule contains the exact therapeutic dose required, meeting stringent pharmaceutical regulations and quality standards demanded by regulatory authorities worldwide.
Automated Capsule Closing and Ejection
The automated capsule closing and ejection system completes the encapsulation process with remarkable precision and reliability. Once filled, capsules move through a series of closing stations where the cap and body sections are mechanically joined under controlled pressure. The encapsulator machine applies consistent closing force to ensure proper capsule integrity without damaging the gelatin shell or compromising the seal. Electronic monitoring systems verify that each capsule is properly closed, automatically rejecting any defective units before they enter the final product stream. The closing mechanism accommodates various capsule materials, including gelatin, HPMC, and enteric-coated shells, adjusting pressure and timing parameters based on material specifications. Following the closing operation, finished capsules are ejected into collection systems through pneumatic transport mechanisms that handle the products gently to prevent damage. Quality control sensors perform final inspections, checking for proper closure, correct fill levels, and overall capsule integrity. The ejection system can direct capsules to different collection points based on quality parameters, automatically segregating products that meet specifications from those requiring reprocessing. This comprehensive closing and ejection system ensures that only perfectly formed capsules reach the packaging stage, maintaining the high quality standards essential for pharmaceutical manufacturing.
Advanced Control Systems and Automation Features
Programmable Logic Controller Integration
Modern encapsulator machines incorporate sophisticated Programmable Logic Controller (PLC) systems that manage every aspect of the production process with exceptional precision. The PLC integration allows operators to program complex filling recipes, adjust production parameters, and monitor real-time performance data through intuitive touchscreen interfaces. These advanced control systems store multiple product configurations, enabling rapid changeovers between different formulations without manual recalibration. The encapsulator machine's PLC system continuously monitors critical process parameters including fill weight, capsule integrity, production speed, and environmental conditions. Automated feedback loops adjust mechanical operations in real-time, compensating for variations in raw materials or environmental factors that could affect product quality. The integration includes comprehensive data logging capabilities that record production statistics, quality metrics, and maintenance schedules for regulatory compliance and process optimization. Advanced diagnostic features identify potential issues before they impact production, scheduling preventive maintenance and alerting operators to parameter deviations. The PLC system also interfaces with external quality control equipment, automatically adjusting filling parameters based on in-line testing results to maintain consistent product specifications throughout extended production runs.
Human-Machine Interface Technology
The Human-Machine Interface (HMI) technology in contemporary encapsulator machines provides operators with unprecedented control and visibility over the production process. Modern HMI systems feature large color touchscreens that display real-time production data, machine status, and quality metrics in easily interpretable formats. Operators can access detailed production reports, adjust filling parameters, and troubleshoot issues through intuitive menu systems that require minimal training. The encapsulator machine's HMI includes predictive maintenance notifications that alert operators to required service intervals based on actual machine usage rather than arbitrary time schedules. Advanced visualization tools display trend data, helping operators identify optimization opportunities and process improvements. The interface supports multiple user access levels, ensuring that sensitive parameters can only be modified by authorized personnel while providing production operators with the information needed for efficient operation. Remote monitoring capabilities allow supervisors to oversee multiple encapsulator machines from centralized control rooms, optimizing resource allocation and response times. The HMI system also provides comprehensive audit trails that document all operator actions and parameter changes, supporting regulatory compliance requirements and quality management systems.
Quality Monitoring and Control Systems
Integrated quality monitoring and control systems ensure that every capsule produced by the encapsulator machine meets stringent pharmaceutical standards. These systems employ multiple sensor technologies including weight checking, vision inspection, and dimensional verification to validate product quality at various stages of production. Real-time statistical process control algorithms analyze quality data to detect trends that might indicate developing issues before they result in out-of-specification products. The encapsulator machine automatically adjusts filling parameters based on continuous quality feedback, maintaining tight control over product attributes throughout production runs. Advanced rejection systems remove defective capsules from the product stream while documenting the reason for rejection and the corrective actions taken. Quality control integration includes environmental monitoring that tracks temperature, humidity, and particulate levels to ensure optimal production conditions. The system generates comprehensive quality reports that document process capability, trend analysis, and compliance with established quality standards. These quality monitoring capabilities provide manufacturers with the confidence that their encapsulator machine consistently produces products that meet or exceed regulatory requirements while optimizing yield and minimizing waste.
Industrial Applications and Performance Specifications
Pharmaceutical Manufacturing Applications

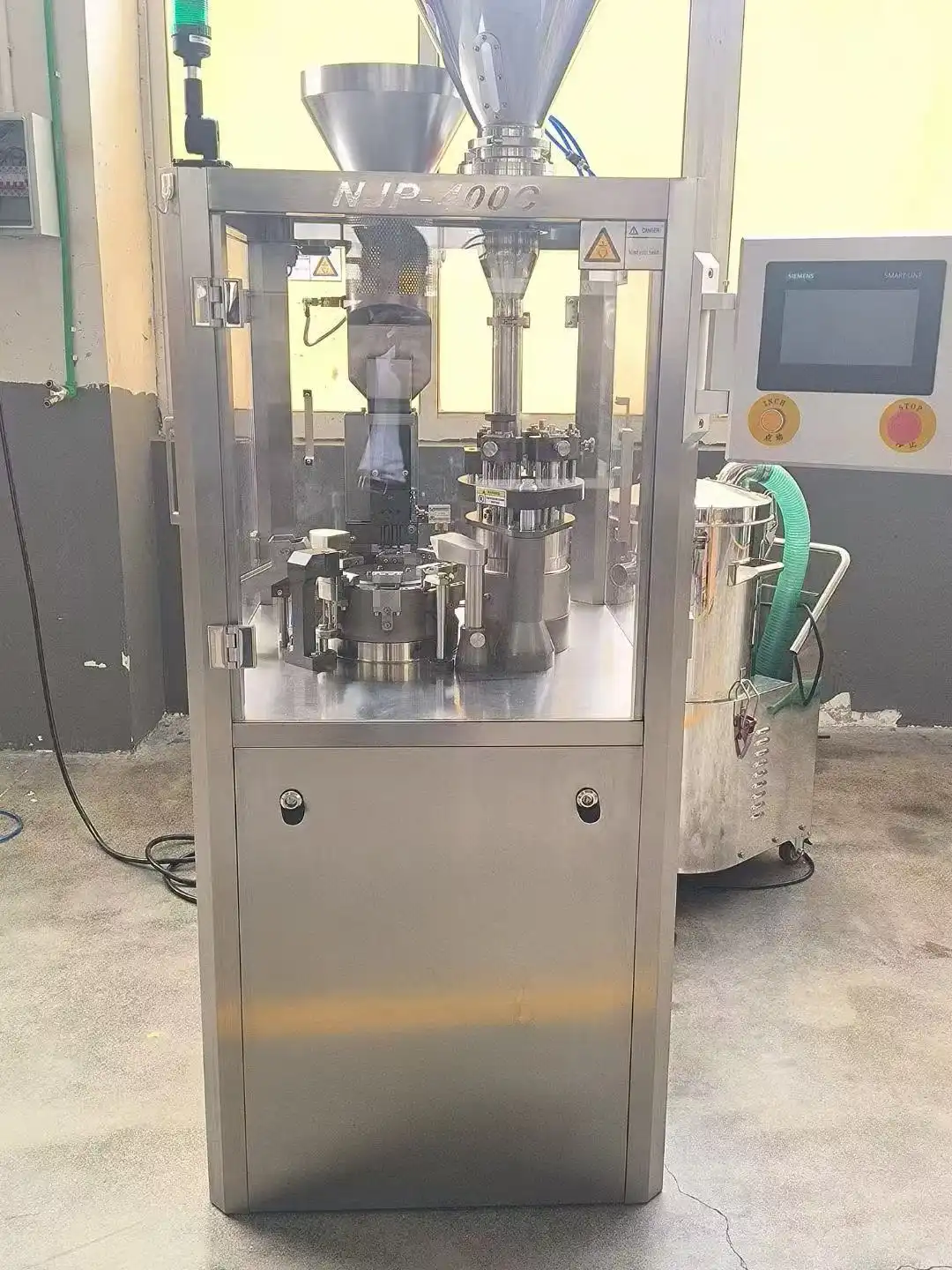

The pharmaceutical industry represents the primary application sector for high-performance encapsulator machines, where precision, reliability, and regulatory compliance are paramount concerns. In pharmaceutical manufacturing, encapsulator machines handle a diverse range of active pharmaceutical ingredients (APIs) including powders, granules, pellets, and micro-tablets that require exact dosing for therapeutic efficacy. The NJP-7800C encapsulator machine, with its impressive capacity of 468,000 capsules per hour, serves large-scale pharmaceutical operations producing prescription medications, over-the-counter drugs, and specialized therapeutic formulations. Pharmaceutical applications demand strict adherence to Good Manufacturing Practice (GMP) standards, which these machines achieve through validated cleaning procedures, material traceability, and comprehensive documentation systems. The encapsulator machine's ability to handle capsule sizes from 00B# to 5# accommodates various dosage requirements while maintaining filling accuracies that meet stringent pharmaceutical tolerances. Advanced pharmaceutical applications often require specialized filling techniques for challenging materials such as hygroscopic powders, volatile compounds, or moisture-sensitive formulations. The robust construction and precise environmental control capabilities of modern encapsulator machines ensure consistent product quality even when processing difficult pharmaceutical formulations under demanding production schedules.
Nutraceutical and Dietary Supplement Production
The rapidly expanding nutraceutical industry relies heavily on encapsulator machines to produce high-quality dietary supplements, vitamins, and functional food products. Nutraceutical applications present unique challenges due to the diverse nature of ingredients including herbal extracts, probiotics, enzymes, and mineral compounds that may have varying physical properties and stability requirements. The encapsulator machine's flexible filling system accommodates these diverse materials while maintaining accurate dosing essential for product efficacy and consumer safety. Nutraceutical manufacturers benefit from the machine's ability to process both single-ingredient formulations and complex multi-ingredient blends that require precise component ratios. The production flexibility offered by modern encapsulator machines enables nutraceutical companies to respond quickly to market demands and seasonal variations in product mix. Quality control features ensure that finished capsules meet label claims for active ingredient content while maintaining shelf stability throughout the product lifecycle. The encapsulator machine's capacity to handle various capsule materials including vegetarian HPMC capsules addresses growing consumer preferences for plant-based supplement formats. Comprehensive cleaning and changeover procedures prevent cross-contamination between different nutraceutical products, ensuring product purity and meeting organic certification requirements where applicable.
Specialized Industrial and Research Applications
Beyond traditional pharmaceutical and nutraceutical applications, encapsulator machines serve specialized industrial sectors and research institutions requiring precise encapsulation capabilities. In the food industry, these machines produce innovative products with encapsulated flavors, colors, or functional ingredients that provide controlled release or enhanced stability. Cosmetic applications utilize encapsulator machines to create beauty capsules containing active skincare ingredients such as vitamins, antioxidants, or specialized compounds that require protection from environmental factors. Research institutions employ encapsulator machines for small-scale experimental production, enabling the development of novel formulations and delivery systems before scaling to commercial production. The agricultural sector uses encapsulation technology for producing controlled-release fertilizers, pesticides, and animal feed supplements that improve efficacy and reduce environmental impact. Veterinary applications require encapsulator machines capable of producing animal health products with precise dosing appropriate for different animal species and sizes. The versatility of modern encapsulator machines supports these diverse applications through adjustable filling parameters, changeable tooling systems, and comprehensive process documentation. Custom filling solutions can be developed for unique applications requiring specialized handling of unusual materials or unconventional capsule configurations, demonstrating the adaptability of contemporary encapsulation technology.
Conclusion
The sophisticated functionality of modern encapsulator machines represents a convergence of mechanical precision, electronic control, and process automation that enables pharmaceutical and related industries to achieve unprecedented levels of production efficiency and product quality. From the initial capsule separation through precision filling to final quality verification, these machines demonstrate how advanced manufacturing technology can meet the demanding requirements of regulated industries while providing the flexibility needed for diverse product portfolios. The integration of PLC control systems, advanced HMI technology, and comprehensive quality monitoring ensures that encapsulator machines deliver consistent performance that meets stringent regulatory standards across multiple application sectors.
Ready to revolutionize your capsule production with cutting-edge encapsulator machine technology? Jining Factop International Trade Company combines decades of pharmaceutical equipment expertise with innovative engineering to deliver solutions that exceed your production goals. Our GMP-certified manufacturing facility, comprehensive after-sales support, and commitment to quality excellence make us the ideal partner for your encapsulation needs. Whether you're scaling up research formulations or optimizing existing production lines, our team of technical specialists is ready to design customized solutions that maximize your operational efficiency and product quality. Don't let outdated equipment limit your potential – contact our experienced sales team today to discover how Factop's advanced encapsulator machines can transform your production capabilities. Reach out to michelle@factopintl.com to schedule your consultation and take the first step toward pharmaceutical manufacturing excellence.
