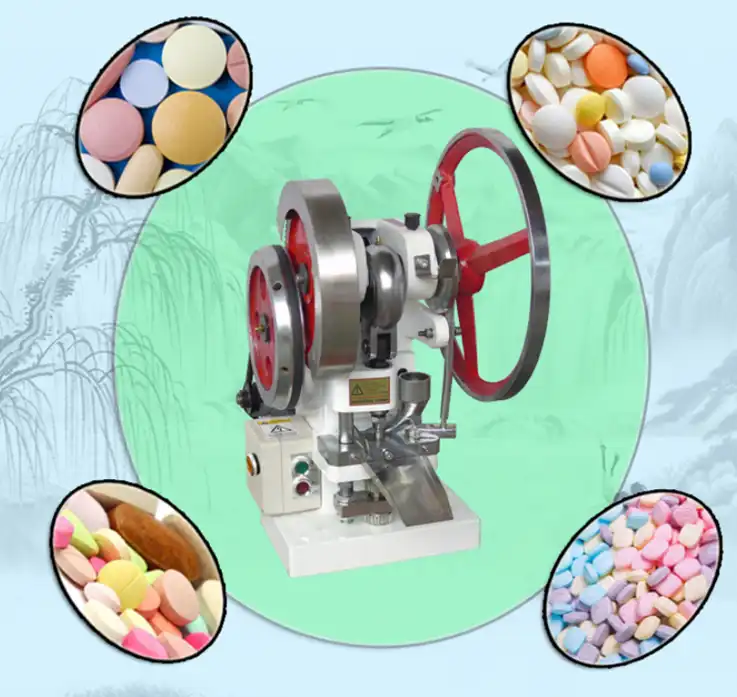

TDP5 Tablet Press Machine Explained: Features, Uses, and Benefits
The TDP5 tablet press machine represents a significant advancement in pharmaceutical compression technology, offering precision, reliability, and versatility for modern production environments. This single-punch tablet press has emerged as the preferred choice for pharmaceutical companies, research institutions, and nutraceutical manufacturers seeking efficient small-batch production capabilities. The TDP5 combines robust engineering with user-friendly operation, making it an indispensable tool for facilities requiring consistent tablet quality and flexible production options. With its compact design, GMP compliance, and advanced compression mechanisms, the TDP5 tablet press machine addresses the evolving needs of pharmaceutical manufacturing while maintaining the highest standards of quality control and operational efficiency.
Technical Specifications and Design Features
Advanced Compression Technology
The TDP5 tablet press machine incorporates state-of-the-art compression technology that ensures uniform tablet formation with exceptional precision. The machine features high precision filling capabilities with low noise operation and minimal material consumption, while providing stable construction to ensure durability under heavy use with precise control of compression force. The compression system utilizes a maximum pressure of 50 kN, enabling the production of tablets with consistent weight distribution and hardness characteristics. This advanced compression mechanism allows operators to adjust pressure settings according to specific formulation requirements, ensuring optimal tablet quality across diverse pharmaceutical applications. The machine's precision engineering minimizes tablet weight variation to less than ±2%, meeting stringent pharmaceutical manufacturing standards.The TDP5 tablet press machine employs a sophisticated cam-driven system that provides smooth, consistent compression cycles throughout extended production runs. The compression force is distributed evenly across the tablet surface, preventing common issues such as lamination, capping, or weight variation that can compromise product quality. The machine's compression chamber is designed with optimal clearances and tolerances, ensuring precise tablet formation while minimizing wear on punches and dies. This attention to mechanical precision translates to extended tooling life and reduced maintenance requirements, making the TDP5 an economically advantageous choice for pharmaceutical manufacturers.
Mechanical Specifications and Performance Parameters

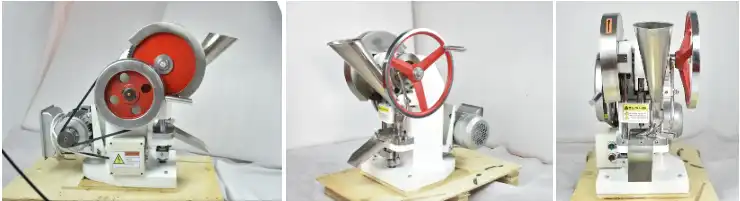

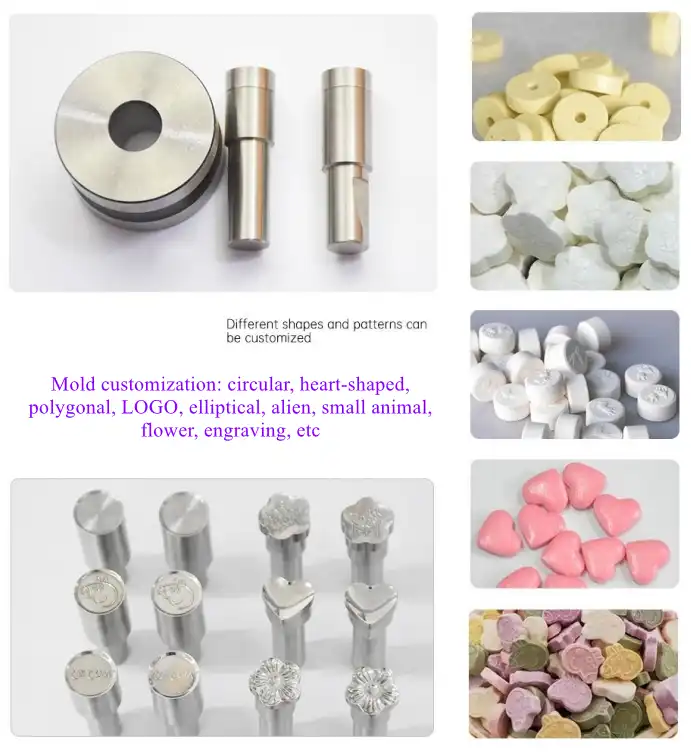

The TDP5 tablet press machine operates with a 750W motor running at 1400 rpm, delivering a maximum output capacity of 3,600 tablets per hour under optimal conditions. The machine accommodates die sizes ranging from 3mm to 20mm in diameter, providing flexibility for various tablet configurations and pharmaceutical formulations. With overall dimensions of 650×440×650mm and a weight of 125kg, the TDP5 maintains a compact footprint suitable for space-constrained laboratory and production environments. The power supply compatibility includes both 110V and 220V options at 50/60Hz, ensuring global applicability across different electrical systems.Performance consistency is maintained through precision-engineered components that minimize vibration and ensure smooth operation throughout extended production cycles. The TDP5 tablet press machine features adjustable speed controls that allow operators to optimize production rates based on material characteristics and tablet specifications. The machine's robust construction incorporates high-grade steel components and precision bearings that provide reliable operation under continuous use conditions. Temperature control mechanisms prevent overheating during extended production runs, maintaining optimal operating conditions that preserve material integrity and tablet quality.
User Interface and Control Systems

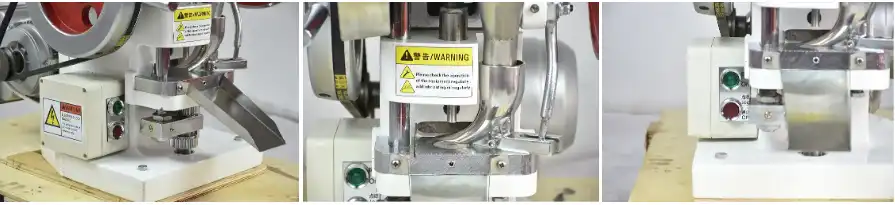

The TDP5 tablet press machine features an intuitive control interface that simplifies operation while providing precise control over critical production parameters. The control panel includes easily accessible speed adjustment controls, pressure settings, and production monitoring displays that enable operators to maintain optimal production conditions. Emergency stop mechanisms and safety interlocks ensure operator protection while preventing damage to the machine or tooling during unexpected events. The user-friendly design reduces training requirements and minimizes the potential for operator error during production operations.Digital displays provide real-time feedback on production speed, compression force, and tablet count, enabling operators to monitor production progress and quality parameters continuously. The TDP5 tablet press machine incorporates automated systems that maintain consistent operation parameters, reducing variability and ensuring product uniformity throughout production runs. Maintenance indicators alert operators to scheduled service requirements, promoting proactive maintenance practices that extend equipment life and minimize unplanned downtime. The control system's modular design facilitates troubleshooting and repairs, reducing maintenance complexity and associated costs.
Manufacturing Applications and Industry Uses
Pharmaceutical Industry Applications
The TDP5 tablet press machine serves as an essential tool for pharmaceutical companies engaged in small-batch production, research and development, and specialty drug manufacturing. single punch tablet presses are particularly suitable for small batch production and research applications, making them ideal for R&D and developing formulations with consistent quality. Pharmaceutical applications include the production of immediate-release tablets, sustained-release formulations, and specialized dosage forms that require precise compression control. The machine's GMP-compliant design ensures adherence to regulatory requirements while maintaining the sterility and quality standards essential for pharmaceutical manufacturing.Research and development laboratories utilize the TDP5 tablet press machine for formulation development, stability testing, and process optimization activities. The machine's ability to handle small material quantities, with minimum consumption as low as 200g, makes it particularly valuable for expensive active pharmaceutical ingredients or limited-availability compounds. Clinical trial material production benefits from the TDP5's precision and flexibility, enabling the manufacture of consistent tablets for Phase I through Phase III clinical studies. The machine's capability to produce tablets with various shapes and embossing patterns supports branding requirements and patient compliance initiatives.Quality control departments rely on the TDP5 tablet press machine for producing reference standards and conducting comparative studies during product development and validation activities. The machine's consistent performance enables the production of tablets with known characteristics for dissolution testing, stability studies, and analytical method validation. Pharmaceutical companies use the TDP5 for pilot-scale production runs that bridge the gap between laboratory development and full-scale manufacturing, providing valuable scale-up data and process understanding.
Nutraceutical and Dietary Supplement Manufacturing
The TDP5 tablet press machine plays a crucial role in nutraceutical manufacturing, where dietary supplements, vitamins, and herbal products require consistent compression to ensure proper dissolution and bioavailability. Nutraceutical manufacturers benefit from the machine's versatility in handling diverse powder characteristics, from fine vitamin powders to coarse botanical extracts. The machine's gentle compression action preserves the integrity of sensitive nutritional compounds while achieving the mechanical strength required for packaging and distribution.Specialty supplement manufacturers utilize the TDP5 tablet press machine for producing custom formulations that combine multiple active ingredients in precise ratios. The machine's accuracy in tablet weight control ensures consistent dosing across production batches, supporting label claims and regulatory compliance. Organic and natural product manufacturers appreciate the machine's easy cleaning capabilities, which prevent cross-contamination between different product lines and maintain organic certification requirements.Contract manufacturing organizations specializing in nutraceuticals rely on the TDP5 tablet press machine for flexible production capabilities that accommodate various client specifications and batch sizes. The machine's quick changeover capabilities enable efficient production scheduling and minimize setup times between different products. This flexibility is particularly valuable in the nutraceutical industry, where product diversity and customization are common requirements.
Research Institution and Laboratory Use
Academic and industrial research institutions employ the TDP5 tablet press machine for fundamental research into tablet compression mechanisms, formulation science, and pharmaceutical technology development. The machine can be widely used in pharmaceutical factories, chemical plants, hospitals, scientific research and other units, with excellent performance, strong adaptability, and ease of use. Research applications include studying the effects of compression force on tablet properties, investigating new excipient systems, and developing novel drug delivery technologies. The machine's precise control capabilities enable researchers to systematically evaluate the relationship between process parameters and tablet characteristics.University pharmaceutical science programs utilize the TDP5 tablet press machine for educational purposes, providing students with hands-on experience in tablet manufacturing technology. The machine's safety features and user-friendly operation make it suitable for academic environments while providing realistic industrial experience. Student research projects benefit from the machine's capability to produce small quantities of tablets for experimental studies and thesis research.Government and regulatory laboratories use the TDP5 tablet press machine for reference standard preparation and method validation studies that support regulatory guidance development. The machine's compliance with international standards and certification requirements ensures that produced tablets meet regulatory specifications for testing and validation purposes. Independent testing laboratories rely on the TDP5's consistency for producing tablets used in comparative studies, bioequivalence testing, and quality assessment activities.
Quality Control and Compliance Standards
GMP Compliance and Regulatory Standards
The TDP5 tablet press machine is engineered to meet stringent Good Manufacturing Practice (GMP) standards, ensuring compliance with international pharmaceutical regulations. The machine features advanced sealing and certified materials to prevent contamination while meeting industry standards, with FDA monitoring compliance with Current Good Manufacturing Practice regulations that provide systems for proper design, monitoring, and control of manufacturing processes. The machine's construction incorporates food-grade and pharmaceutical-safe contact surfaces, including stainless steel components and chrome-coated brass elements that resist corrosion and facilitate thorough cleaning and sanitization procedures.Documentation capabilities of the TDP5 tablet press machine support regulatory compliance through comprehensive batch records, production logs, and quality control data collection. The machine's design facilitates validation activities, including Installation Qualification (IQ), Operational Qualification (OQ), and Performance Qualification (PQ) protocols required for pharmaceutical manufacturing equipment. Cleaning validation is simplified through the machine's accessible design and smooth surface finishes that prevent product accumulation and enable effective cleaning verification.The TDP5 tablet press machine incorporates design features that support 21 CFR Part 11 compliance for electronic records and signatures when integrated with appropriate data management systems. Audit trail capabilities and user access controls ensure data integrity and traceability throughout the production process. The machine's qualification documentation package includes all necessary technical drawings, material certificates, and testing protocols required for regulatory submission and inspection readiness.
Quality Assurance Systems
Quality assurance protocols for the TDP5 tablet press machine encompass comprehensive testing procedures that verify equipment performance and product quality throughout the manufacturing lifecycle. Pre-production qualification includes mechanical calibration, compression force verification, and speed accuracy testing to ensure optimal performance parameters. In-process monitoring systems track critical quality attributes such as tablet weight, hardness, and thickness to maintain consistent product specifications.The TDP5 tablet press machine supports statistical process control (SPC) implementation through data collection capabilities that enable trend analysis and process capability studies. Quality control laboratories utilize the machine's consistent performance for producing tablets used in dissolution testing, content uniformity analysis, and stability studies. The machine's precision contributes to reduced testing frequency and enhanced confidence in product quality, supporting risk-based quality management approaches.Preventive maintenance programs for the TDP5 tablet press machine include scheduled inspections, calibration verification, and component replacement protocols that maintain equipment performance and prevent quality deviations. Maintenance documentation supports regulatory compliance and provides traceability for equipment history and performance trends. The machine's modular design facilitates maintenance activities while minimizing production disruptions and maintaining validated status.
Certification and Testing Protocols
The TDP5 tablet press machine undergoes rigorous factory acceptance testing (FAT) protocols that verify mechanical performance, electrical safety, and operational parameters before shipment. Testing procedures include compression force calibration, speed accuracy verification, and safety system functionality testing to ensure compliance with specified requirements. Quality certificates accompany each machine, documenting test results and confirming adherence to manufacturing standards.International certification compliance includes CE marking for European markets, ISO 9001:2015 quality management system certification, and other regional regulatory requirements. The TDP5 tablet press machine meets electrical safety standards including IEC guidelines and national electrical codes for safe operation in pharmaceutical manufacturing environments. Material certificates for contact surfaces verify food-grade and pharmaceutical compliance, supporting regulatory submissions and validation activities.Site acceptance testing (SAT) protocols guide installation and commissioning activities, ensuring proper equipment setup and performance verification in the customer's facility. The TDP5 tablet press machine includes comprehensive installation documentation, user manuals, and training materials that support successful implementation and ongoing operation. Technical support services provide assistance with validation activities, troubleshooting, and optimization to maximize equipment performance and compliance with quality standards.
Conclusion
The TDP5 tablet press machine represents an optimal solution for pharmaceutical, nutraceutical, and research applications requiring precise tablet compression in small to medium-scale production environments. Its combination of advanced compression technology, GMP compliance, and user-friendly operation makes it an invaluable asset for organizations prioritizing quality, efficiency, and regulatory adherence. The machine's versatility across diverse applications, from pharmaceutical R&D to specialized supplement manufacturing, demonstrates its adaptability to evolving industry needs while maintaining consistent performance standards.
Ready to enhance your tablet manufacturing capabilities? As a leading China TDP5 tablet press machine manufacturer and China TDP5 tablet press machine supplier, Factop offers competitive TDP5 tablet press machine price options with comprehensive support services. Our wholesale TDP5 tablet press machine solutions cater to diverse production requirements, backed by our reputation as a trusted China TDP5 tablet press machine factory. contact us today to explore our TDP5 tablet press machine for sale inventory and discover how our cutting-edge technology can optimize your production processes. For detailed specifications, customization options, and pricing information, reach out to our expert team at michelle@factopintl.com.
