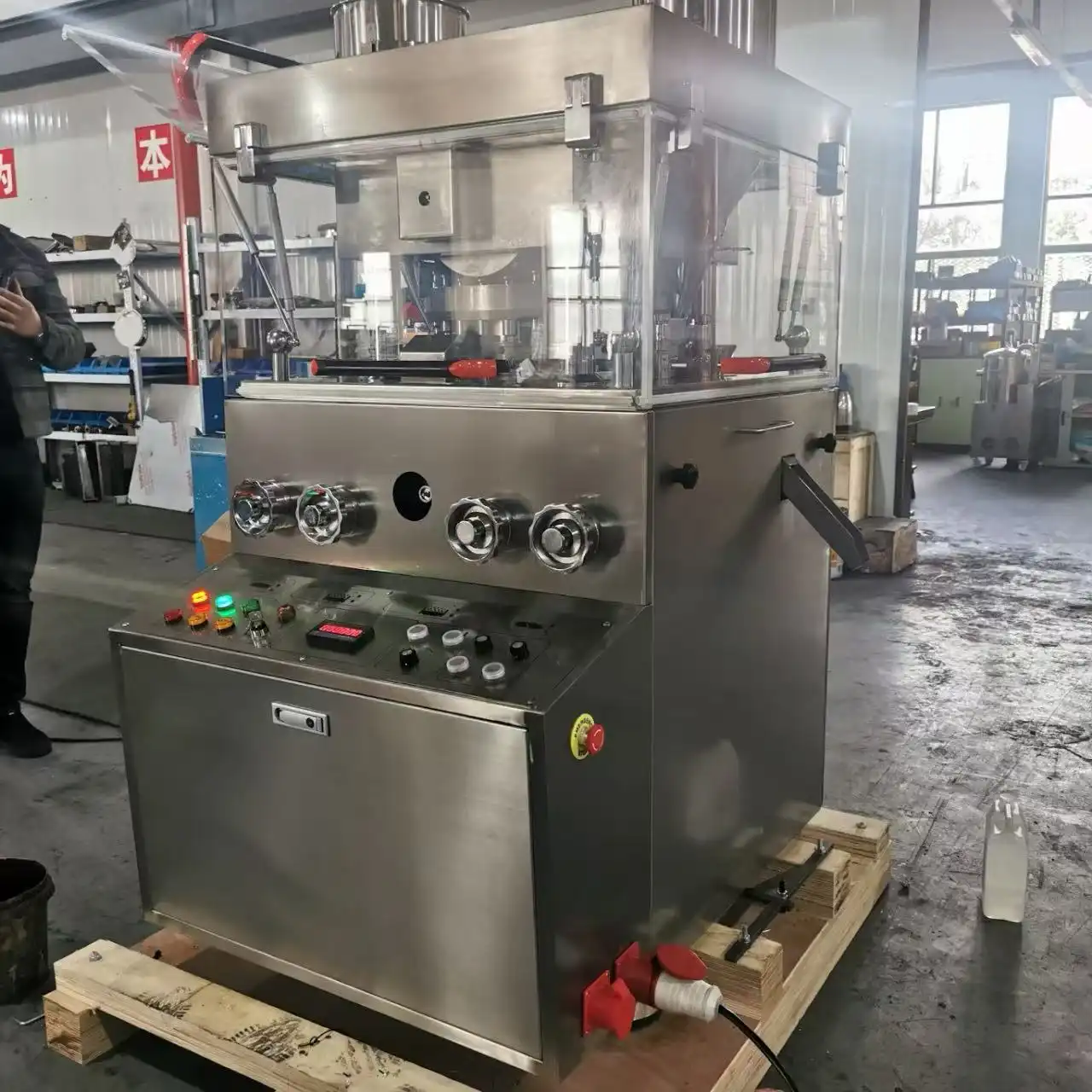

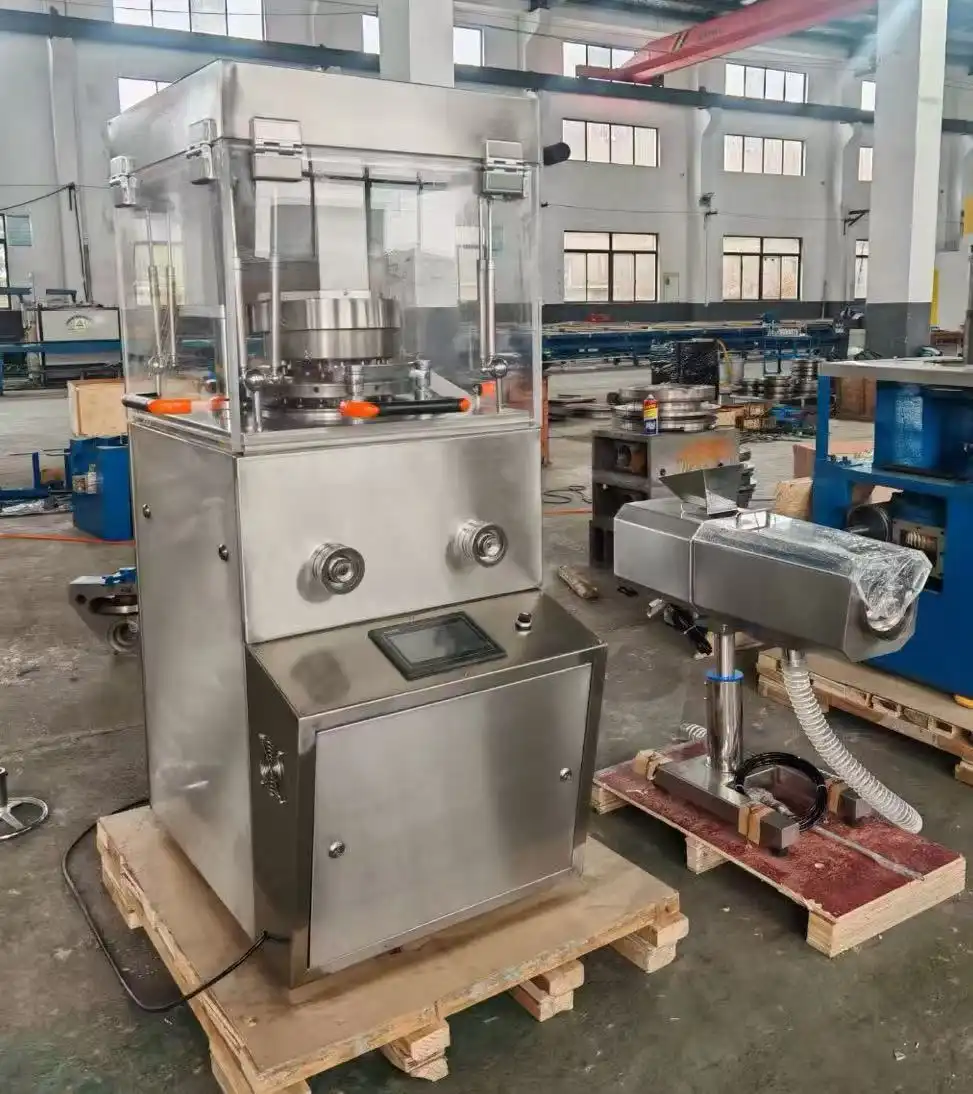

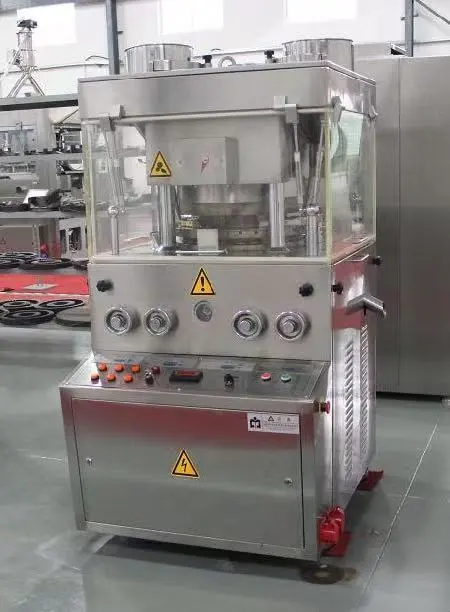

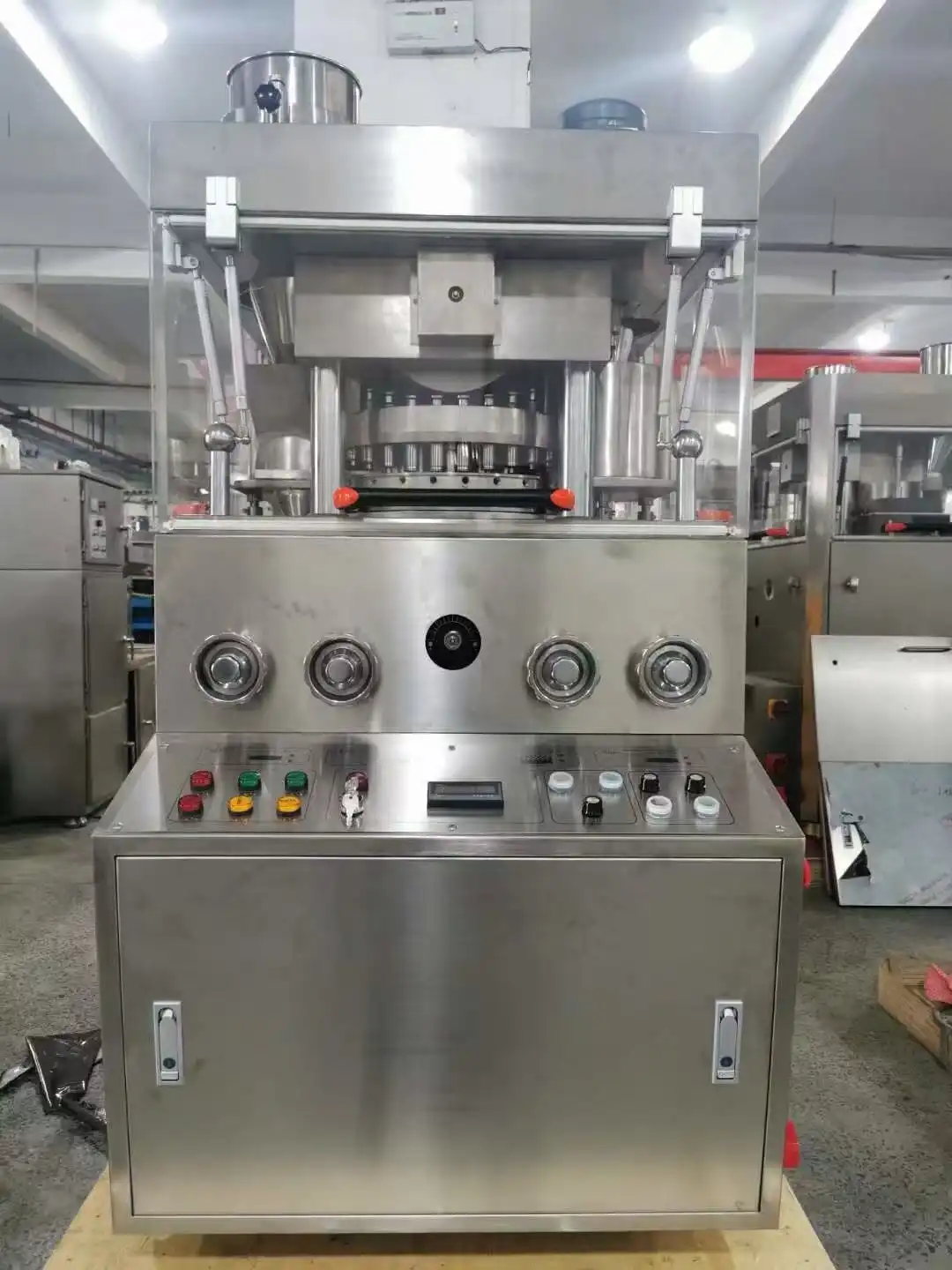

What are the key features of double rotary tablet presses?
Double rotary tablet presses represent a significant advancement in pharmaceutical manufacturing technology, offering unparalleled efficiency and precision in tablet production. These sophisticated machines feature dual rotating turrets that allow for continuous operation and dramatically increased production rates compared to single rotary systems. The key features of double rotary tablet presses include their high production capacity, precision control mechanisms, versatile application capabilities across various industries, and robust construction designed for continuous operation in demanding manufacturing environments. With production capacities reaching up to 126,000 tablets per hour, these machines have become indispensable for medium to large-scale pharmaceutical operations seeking to optimize their manufacturing processes while maintaining consistent product quality.
Advanced Technical Specifications and Design Features
High-Performance Compression System
The compression system of a double rotary tablet press represents the core of its operational capabilities, featuring dual compression stations working in tandem to maximize production efficiency. Each station is equipped with precisely engineered upper and lower punches that work in perfect synchronization during the compression cycle. The tabletting pressure of up to 100KN enables these machines to handle a wide range of formulations, from delicate pharmaceutical compounds to dense chemical products. The double rotary tablet press utilizes a sophisticated hydraulic or pneumatic system that provides consistent pressure distribution across all punches, ensuring uniform tablet density and hardness regardless of production speed. This uniform compression force is critical for pharmaceutical products where dosage accuracy directly impacts therapeutic efficacy. The system's design incorporates advanced load cells and pressure sensors that continuously monitor and adjust compression forces in real-time, compensating for variations in powder flow or density that might otherwise lead to inconsistent tablet quality. Additionally, the compression system in modern double rotary tablet presses features quick-change tooling capabilities that significantly reduce downtime during product changeovers, making these machines ideal for contract manufacturing operations that frequently switch between different product formulations.
Innovative Turret Design and Rotation Mechanism
The turret design in a double rotary tablet press represents a marvel of precision engineering, accommodating multiple tooling stations arranged in a circular configuration to maximize production efficiency. Modern machines feature turrets with 30-50 stations, each holding a complete set of tooling consisting of upper punches, middle dies, and lower punches. This innovative three-piece tooling system allows for complex tablet shapes and features, including embossed logos, score lines, and distinctive geometries that aid in product identification and consumer compliance. The double rotary tablet press employs a sophisticated rotation mechanism driven by a powerful motor, typically 4-7.5 kW, enabling precise control of production speeds. The rotation system incorporates high-precision bearings and hardened, ground surfaces that minimize vibration and ensure smooth operation even at maximum speeds of up to 50 rpm. This translates to remarkable production capacities of 120,000-126,000 tablets per hour. The turret's design also features automatic lubrication systems that continuously deliver precise amounts of food-grade lubricant to critical bearing surfaces, extending machine life and reducing maintenance requirements. Additionally, modern double rotary tablet presses utilize advanced servo-motor technology that provides infinitely variable speed control, allowing operators to fine-tune production rates based on specific formulation characteristics without sacrificing tablet quality or increasing wear on tooling components.
Intelligent Control Systems and Automation Features
The modern double rotary tablet press incorporates sophisticated control systems that transform what was once a purely mechanical operation into a highly automated, precision-controlled manufacturing process. At the heart of these systems lies an advanced PLC (Programmable Logic Controller) or industrial computer that monitors and controls all critical parameters throughout the tabletting process. The control interface typically features a user-friendly HMI (Human-Machine Interface) with intuitive touchscreen controls that display real-time data on production rates, compression forces, turret speed, and a host of other operational metrics. The double rotary tablet press utilizes a comprehensive suite of sensors distributed throughout the machine that continuously monitor critical parameters such as pre-compression and main compression forces, tablet thickness, tablet weight, and ejection forces. These sensors feed data to the control system, which can make automatic adjustments to maintain target specifications without operator intervention. Advanced models feature built-in statistical process control capabilities that track trends in critical quality attributes, alerting operators to potential issues before they result in out-of-specification products. The automation extends to safety systems as well, with emergency stop functions, guard interlocks, and automatic shutdown protocols that protect both operators and equipment in the event of abnormal conditions. Additionally, modern double rotary tablet presses often include connectivity features that allow integration with broader manufacturing execution systems (MES) and enterprise resource planning (ERP) systems, supporting Industry 4.0 initiatives and facilitating comprehensive data collection for regulatory compliance and continuous improvement efforts.
Versatility and Application Flexibility
Multi-Industry Application Capabilities
The double rotary tablet press demonstrates remarkable versatility across diverse industrial applications, making it a cornerstone technology in several manufacturing sectors beyond traditional pharmaceuticals. In the pharmaceutical industry, these machines excel at producing tablets, capsules, and lozenges with precise dosage control and consistent dissolution profiles critical for therapeutic efficacy. The robust design of the double rotary tablet press enables it to handle various formulation types, from direct compression blends to more complex granulated materials that require specific compression parameters. Food processing companies leverage these machines to produce milk tablets, candy tablets, and nutritional supplements with consistent hardness, appearance, and taste profiles. The precise weight control capabilities ensure that each tablet contains the exact amount of ingredients specified in the formulation, which is particularly important for products making nutritional claims. In the healthcare products sector, the double rotary tablet press proves invaluable for manufacturing vitamins, calcium tablets, and fish oil tablets, where both active ingredient content and tablet integrity during packaging and shipping are critical concerns. The machine's ability to produce tablets with logo embossing and specific shapes helps brands distinguish their products in competitive markets while also aiding consumers in product identification. Within the chemical industry, these versatile machines produce camphor balls, aromatic tablets, and fertilizer tablets that require specific density and dissolution characteristics to function as intended. The double rotary tablet press's capacity to apply precise compression forces makes it ideal for creating tablets that release active ingredients at predetermined rates, whether for slow-release fertilizers or quick-dissolving cleaning products.
Tooling Compatibility and Format Flexibility
The exceptional format flexibility of double rotary tablet presses stems from their sophisticated tooling systems that accommodate a wide range of tablet shapes, sizes, and features. Modern machines accept standardized tooling configurations including B, D, and BB tooling sets, allowing manufacturers to produce tablets ranging from small 6mm diameter pills to larger 25mm diameter tablets. The double rotary tablet press features quick-change tooling systems that facilitate rapid transitions between product runs, significantly reducing downtime compared to older press designs. This flexibility is particularly valuable for contract manufacturing organizations that frequently switch between different products to serve diverse client needs. The three-component tooling system—consisting of upper punches, middle dies, and lower punches—enables the production of complex tablet forms including bi-convex, flat-faced, beveled edge, and specialty-shaped tablets such as ovals, triangles, and custom profiles that enhance brand recognition. Advanced double rotary tablet presses offer multi-layer tabletting capabilities, allowing manufacturers to create bi-layer or tri-layer tablets with distinct sections containing different active ingredients or formulations designed to release at different rates within the body. This sophisticated functionality expands the potential applications for solid dosage forms in both pharmaceutical and nutraceutical markets. Additionally, modern tooling sets for double rotary tablet presses feature specialized coatings and materials such as chrome-plated steel or tungsten carbide that resist wear and corrosion, extending tool life even when processing abrasive or corrosive formulations. The precision manufacturing of these tooling components ensures tight tolerances that translate to consistent tablet dimensions and weights, critical factors for products that must meet strict regulatory standards.
Production Scale and Efficiency Considerations
The double rotary tablet press represents a significant advancement in production scalability, bridging the gap between research and development operations and full-scale commercial manufacturing. With production capacities ranging from 60,000 to 126,000 tablets per hour, these machines offer manufacturers tremendous flexibility to scale operations according to market demands without necessarily investing in multiple equipment lines. The efficiency of the double rotary tablet press stems from its continuous operation design, which eliminates the start-stop cycles inherent in single-punch machines, resulting in smoother operation and reduced mechanical stress that extends equipment life. The dual rotating turrets enable higher throughput without increasing compression speed, which helps maintain tablet quality by allowing adequate dwell time for proper compression even at high production rates.
Energy efficiency represents another key consideration, with modern double rotary tablet presses incorporating variable frequency drives and energy-optimized components that reduce power consumption per tablet produced. Despite the impressive 4kW motor typically found in these machines, the energy utilization per unit of production is remarkably efficient compared to older press technologies or alternative tabletting methods. The compact footprint of double rotary tablet presses—typically around 1500mm x 1300mm x 1650mm—optimizes valuable manufacturing floor space while still delivering industrial-scale production capacity. This space efficiency becomes particularly valuable in facilities operating multiple production lines or in markets with high real estate costs. Additionally, the double rotary tablet press features integrated dust collection systems that improve operator safety, reduce product loss, and contribute to maintaining clean manufacturing environments necessary for GMP compliance. Modern designs also incorporate noise reduction technologies that improve the working environment and help facilities meet occupational health and safety requirements while maintaining high production volumes.
Maintenance, Compliance, and Support Features
GMP-Compliant Construction and Materials
The double rotary tablet press is engineered with rigorous adherence to Good Manufacturing Practices (GMP), incorporating materials and construction techniques that ensure product safety, quality, and regulatory compliance. All product-contact surfaces in these machines are typically constructed from pharmaceutical-grade stainless steel (usually 316L grade) that resists corrosion, prevents contamination, and withstands repeated cleaning and sanitization procedures without degradation. The double rotary tablet press features polished surfaces with minimal crevices, eliminating potential areas where product residue might accumulate and create cross-contamination risks between production runs. This attention to surface finish extends beyond purely aesthetic considerations to serve as a critical element in maintaining product integrity and purity.
Modern designs incorporate tri-clamp connections and tool-less disassembly features that facilitate thorough cleaning and inspection, reducing downtime between product changeovers while ensuring complete removal of previous product residues. The machine's frame and non-product contact components are typically constructed from powder-coated mild steel or stainless steel that provides durability while resisting the corrosive effects of cleaning agents commonly used in pharmaceutical environments. The electrical and electronic components in a double rotary tablet press are typically rated IP65 or higher, protecting sensitive controls from dust and water ingress during wash-down procedures. This level of protection ensures reliable operation in demanding manufacturing environments while facilitating compliance with cleaning validation requirements. Advanced models feature fully enclosed compression zones with transparent access panels that allow visual monitoring while containing dust and preventing environmental contamination. These design elements not only support compliance with regulatory requirements but also protect operators and product quality throughout the manufacturing process.
Cleaning and Maintenance Accessibility
The double rotary tablet press incorporates numerous design features specifically focused on facilitating efficient cleaning, maintenance, and servicing procedures that minimize downtime while ensuring consistent performance. Quick-release mechanisms and tool-less disassembly features allow operators to rapidly access critical components for cleaning or inspection without requiring specialized tools or extensive technical training. This accessibility translates directly to reduced downtime between production runs and simplified changeover procedures when switching between different products. The double rotary tablet press features swing-away front compression stations that provide unobstructed access to the turret area, punches, and dies during cleaning and maintenance operations. This innovative design eliminates the need to remove heavy components or work in awkward positions, improving both efficiency and ergonomics for maintenance personnel.
Strategic placement of lubrication points with clear markings ensures that routine maintenance procedures can be completed efficiently and accurately, preventing the premature wear that might otherwise occur from inadequate lubrication of high-stress components. Modern double rotary tablet presses often incorporate automated clean-in-place (CIP) systems that significantly reduce manual cleaning requirements and ensure consistent, validated cleaning results. These systems typically include spray balls, rotating nozzles, and programmable cleaning cycles that deliver cleaning solutions to all product-contact surfaces without disassembly. The machine's control system typically includes maintenance scheduling features that track operating hours and automatically generate alerts when preventive maintenance procedures are due. This proactive approach helps prevent unexpected failures by addressing potential issues before they impact production. Additionally, the double rotary tablet press is designed with modular components that can be quickly replaced during maintenance operations, minimizing the impact of repairs on overall equipment availability. This modularity extends component life cycles by allowing individual parts to be serviced or replaced without necessitating complete system overhauls.
Quality Control and Documentation Features
The modern double rotary tablet press incorporates sophisticated quality control mechanisms that continuously monitor critical process parameters and product attributes throughout the manufacturing process. Integrated weight control systems utilize precision load cells that measure the forces applied during compression, correlating these measurements with tablet weight to detect and reject tablets that fall outside specified parameters. These systems can automatically adjust fill depths in response to detected variations, maintaining consistent tablet weights despite normal variations in powder density or flow characteristics. The double rotary tablet press features advanced instrumentation that monitors pre-compression and main compression forces, ejection forces, and tablet thickness in real-time, providing comprehensive data for process validation and continuous verification of manufacturing conditions. This data collection capability supports both immediate quality decisions and long-term process improvement initiatives.
Automated sampling systems can periodically divert tablets for in-process testing without interrupting production, ensuring regular quality checks throughout extended production runs. These samples can be automatically directed to integrated testing equipment that measures hardness, thickness, friability, and disintegration time—critical quality attributes that directly impact product performance. Modern machines include comprehensive audit trail features that record all operator interventions, parameter changes, and alarms, creating an unalterable electronic record that satisfies regulatory requirements for data integrity. The double rotary tablet press control systems typically support electronic batch record capabilities, automatically documenting all relevant process parameters throughout each production run. This documentation includes compression forces, turret speed, rejected tablet counts, and any deviations from established parameters, creating comprehensive records that facilitate both batch release decisions and investigations into quality issues should they arise. Additionally, these machines often feature connectivity options that allow integration with laboratory information management systems (LIMS) and quality management systems (QMS), streamlining documentation workflows and reducing the potential for transcription errors in quality records.
Conclusion
The double rotary tablet press stands as a pinnacle of pharmaceutical manufacturing technology, offering unmatched production capacity, precision, and versatility. Its ability to produce up to 126,000 tablets per hour while maintaining strict quality standards makes it indispensable for modern manufacturing operations across multiple industries. The combination of robust construction, GMP-compliant design, and advanced automation features ensures consistent product quality even during extended production runs.
Are you looking to upgrade your tablet production capabilities? Factop Pharmacy Machinery Trade Co., Ltd brings years of experience in solid pharmaceutical processing and packaging solutions. Our equipment meets rigorous quality standards, having passed Product Quality Inspection Center evaluations and obtained both ISO9001:2015 certification and CE certification. We offer a mature technical team, GMP-compliant facilities, fast delivery, and free accessories within the first year after purchase. Contact us today at michelle@factopintl.com to discover how our double rotary tablet press solutions can transform your manufacturing efficiency and product quality.
