What Safety Features Are Included in Double Rotary Tablet Presses?
Double rotary tablet presses represent a significant advancement in pharmaceutical manufacturing technology, offering high-speed production capabilities while maintaining precise tablet formation. However, with such powerful machinery comes the critical need for comprehensive safety features. Modern double rotary tablet press systems incorporate numerous safety mechanisms designed to protect operators, maintain product integrity, and ensure consistent manufacturing quality. These safety features are not merely add-ons but integral components that pharmaceutical companies must consider when selecting equipment for their production facilities. This article explores the essential safety features found in today's double rotary tablet presses and why they matter for pharmaceutical manufacturing operations.
Emergency Protection Systems
Emergency Stop Mechanisms
The emergency stop function is perhaps the most fundamental safety feature in any double rotary tablet press. These systems are designed to immediately halt all mechanical operations when activated, preventing potential injuries or equipment damage. Modern double rotary tablet press models feature strategically placed emergency stop buttons that are easily accessible from multiple positions around the machine. These bright red, mushroom-shaped buttons are designed to be quickly identified and activated in case of emergency. When pressed, they instantly cut power to the machine's drive systems, bringing all moving parts to a controlled stop. This immediate response capability is crucial in preventing accidents that could result in operator injury or damage to the expensive precision components of the tablet press. Additionally, advanced models incorporate emergency stop circuits that monitor system status continuously, automatically triggering shutdown if abnormal operating conditions are detected, such as excessive pressure readings or mechanical resistance that might indicate a jam or misalignment.
Automatic Overload Protection
Overload protection systems are critical safety features that prevent damage to the double rotary tablet press during operation. These intelligent systems continuously monitor the pressing force being applied during the tableting process. With pressing forces that can reach up to 100KN, as seen in Factop's double rotary tablet press models, overload situations can cause significant damage to the machine's components if left unchecked. The automatic overload protection system utilizes pressure sensors and sophisticated control algorithms to detect when the pressing force exceeds safe operational thresholds. When such conditions are detected, the system immediately reduces the pressing force or halts the operation entirely, preventing potential damage to the punches, dies, or drive mechanisms. This protection is particularly important when processing materials with variable densities or compressibility characteristics, as these can sometimes lead to unexpected resistance during the compression phase. By implementing automatic overload protection, manufacturers can avoid costly repairs and downtime while ensuring the longevity of their tablet press equipment.
Protective Interlocks and Guards

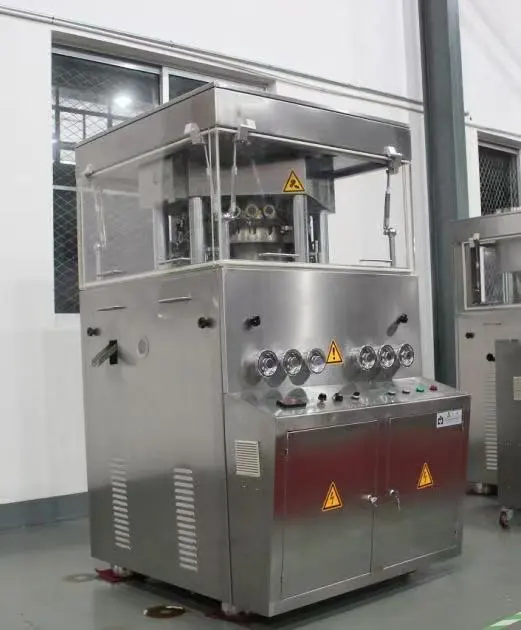

Physical guards and interlock systems represent a crucial layer of safety in double rotary tablet press design. These protective mechanisms prevent access to moving parts during operation, significantly reducing the risk of operator injury. Modern double rotary tablet press machines feature comprehensive guard systems that enclose the rotating turrets, feed mechanisms, and drive components. These guards are typically constructed from transparent materials that allow operators to monitor the tableting process while maintaining a safe distance from moving parts. Sophisticated interlock systems ensure that the machine cannot operate unless all guards are properly closed and secured. If a guard is opened during operation, the interlock system immediately triggers a controlled shutdown of the machine. This integration of physical barriers with electronic safety systems creates a multi-layered approach to operator protection. Additionally, some advanced models incorporate zoned guarding systems that allow for partial access to certain areas of the machine for adjustments or material loading while maintaining protection around critical moving components. This thoughtful design approach balances operational efficiency with comprehensive safety measures.
Contamination Prevention Features
Dust Extraction Systems
Effective dust extraction systems are essential safety features in double rotary tablet press operations, particularly in pharmaceutical manufacturing environments. These systems serve multiple safety functions, including preventing cross-contamination, protecting operators from inhalation hazards, and reducing the risk of dust explosions. Modern double rotary tablet press machines incorporate sophisticated dust extraction mechanisms that create negative pressure zones around the tableting area. These systems typically include high-efficiency particulate air (HEPA) filtration components that capture airborne particles generated during the compression process. The dust extraction system in high-end double rotary tablet press models can capture particles as small as 0.3 microns, ensuring that even the finest powder materials are contained within the system. This level of containment is particularly important when manufacturing potent pharmaceutical compounds or when transitioning between different product formulations. By minimizing airborne contaminants, these systems not only protect product quality but also create a safer working environment for operators. Additionally, advanced dust extraction systems are designed with easy-to-clean components that facilitate thorough cleaning validation, an essential requirement for pharmaceutical manufacturing operations operating under GMP guidelines.
Sealed Bearing Systems
Sealed bearing systems represent a critical safety feature in double rotary tablet press design, particularly for preventing contamination and ensuring reliable operation. These specialized bearings are completely enclosed, preventing lubricant leakage that could contaminate pharmaceutical products while also protecting the bearing mechanism from powder ingress. In a double rotary tablet press capable of producing up to 126,000 tablets per hour, bearing reliability is paramount to maintaining continuous operation. The sealed bearing systems used in modern tablet presses utilize food-grade lubricants that are permanently sealed within the bearing assembly, eliminating the need for routine lubrication and removing a potential source of contamination. These bearings are typically manufactured from pharmaceutical-grade stainless steel that meets stringent regulatory requirements for material compatibility. The implementation of sealed bearing systems significantly reduces the risk of mechanical failure while extending the service life of critical components. This design approach is particularly valuable in GMP-compliant manufacturing environments where product contamination concerns are paramount. By isolating the mechanical components from the product path, sealed bearing systems provide an essential layer of protection against both product contamination and component damage.
Material Containment Controls
Material containment controls are sophisticated safety features designed to prevent product spillage and cross-contamination in double rotary tablet press operations. These systems ensure that pharmaceutical ingredients remain fully contained throughout the tableting process, protecting both product quality and operator safety. Modern double rotary tablet press machines incorporate precision-engineered feed frames and hopper systems that minimize product loss during operation. These components are designed with minimal clearances and smooth surface finishes that prevent powder accumulation in hard-to-clean areas. Advanced material containment controls also include pressure-compensating feed systems that adjust automatically to maintain consistent powder flow regardless of hopper fill level or material characteristics. This adaptive capability ensures uniform tablet weight and prevents overflow situations that could lead to contamination. Additionally, some high-end double rotary tablet press models feature automated cleaning systems that utilize compressed air or vacuum technology to remove residual powder from critical areas during product changeovers. These cleaning systems can significantly reduce the time required for complete product changeovers while minimizing the risk of cross-contamination between different formulations. By implementing comprehensive material containment controls, manufacturers can maintain strict adherence to GMP requirements while protecting both product integrity and operator safety.
Operational Safety Systems
Force Monitoring and Feedback Systems
Force monitoring and feedback systems represent a sophisticated safety feature in modern double rotary tablet press machines. These systems continuously measure and analyze the compression forces applied during the tableting process, providing real-time feedback to operators and control systems. With pressing forces of up to 100KN, as featured in Factop's double rotary tablet press models, precise force monitoring is essential for both product quality and equipment protection. Advanced force monitoring systems utilize strain gauge technology or piezoelectric sensors mounted on the compression rollers to measure the exact force applied to each tablet. This data is processed by the machine's control system, which can automatically adjust compression parameters to maintain consistent tablet quality despite variations in powder flow or density. The force monitoring system also serves as a critical safety feature by detecting abnormal force patterns that might indicate tooling wear, improper setup, or material issues. When force readings exceed predefined safety thresholds, the system can trigger alarms or automatically adjust operations to prevent damage to the machine's components. This intelligent monitoring capability is particularly valuable in high-speed production environments where manual observation alone cannot detect subtle changes in pressing forces. By implementing comprehensive force monitoring and feedback systems, manufacturers can simultaneously enhance product quality, extend equipment life, and improve operational safety.
Speed Control and Ramping Systems
Speed control and ramping systems are essential safety features that prevent mechanical shock and ensure smooth operation of double rotary tablet press machines. These intelligent systems manage the acceleration and deceleration of the main drive and turrets, protecting both the machine components and the product quality. In high-capacity models capable of producing up to 126,000 tablets per hour, controlled speed management is crucial for safe operation. Modern double rotary tablet press machines incorporate variable frequency drives (VFDs) that allow for precise control of motor speed across a wide operating range. These systems implement soft-start functionality that gradually increases the rotation speed of the turrets, preventing mechanical stress on drive components and reducing wear on punches and dies. Similarly, controlled deceleration prevents abrupt stops that could damage precision components or cause tablet defects. Advanced speed control systems also incorporate automatic speed optimization algorithms that adjust rotation rates based on material characteristics, tooling configuration, and desired tablet properties. This adaptive capability ensures that the machine operates at the optimal speed for each specific formulation. For operator safety, these systems often include two-handed start controls that prevent accidental machine activation, requiring deliberate action from the operator to begin production. By implementing sophisticated speed control and ramping systems, manufacturers can significantly extend equipment life while maintaining consistent product quality and enhancing operator safety.
Automated Jam Detection and Resolution
Automated jam detection and resolution systems represent a critical safety feature in modern double rotary tablet press machines. These intelligent systems continuously monitor the mechanical operation of the press, identifying potential jams or obstructions before they can cause significant damage or production disruptions. In high-speed production environments where double rotary tablet press machines operate at speeds of 30-50 RPM, producing up to 120,000 tablets per hour, prompt jam detection is essential for maintaining operational efficiency and preventing equipment damage. These systems typically utilize torque monitoring sensors that detect sudden increases in resistance that might indicate a jam in the turret or feed mechanisms. When abnormal resistance is detected, the system can automatically reduce speed or initiate a controlled shutdown to prevent damage to the punches, dies, or drive components. Advanced jam detection systems also incorporate pattern recognition algorithms that can differentiate between normal operational variations and potential jam situations, reducing false alarms while maintaining vigilant protection. Some sophisticated double rotary tablet press models feature automated recovery procedures that can resolve minor jams without operator intervention, significantly reducing downtime and enhancing overall equipment effectiveness. These automated procedures might include reverse rotation sequences, gentle oscillation of the turrets, or targeted air blasts to dislodge obstructions. By implementing comprehensive jam detection and resolution systems, manufacturers can protect their valuable equipment investment while maintaining production continuity and enhancing operator safety.
Conclusion
Double rotary tablet presses represent a significant investment in pharmaceutical manufacturing capabilities, with advanced safety features being critical components of these sophisticated machines. From emergency protection systems to contamination prevention measures and operational safety controls, these features work together to protect operators, maintain product quality, and ensure efficient production. As the pharmaceutical industry continues to evolve, manufacturers like Factop Pharmacy Machinery Trade Co., Ltd. remain at the forefront of developing innovative safety solutions that meet the demanding requirements of modern pharmaceutical production.
Are you looking to upgrade your tablet production capabilities with state-of-the-art equipment that prioritizes safety and efficiency? Factop's double rotary tablet presses offer the perfect blend of innovative technology, robust safety features, and exceptional production capacity. With our GMP-compliant facilities, mature technical team, and comprehensive support services including FAT testing, on-site installation, and commissioning, we provide complete solutions for your pharmaceutical manufacturing needs. Contact us today at michelle@factopintl.com to discover how our expertise can elevate your tablet production process.
