Soft Gelatin Capsule Filling Machine

Product Introduction

The Soft Gelatin Capsule Filling Machine is engineered to ensure high precision and efficiency in the production of soft gelatin capsules. This machine is an essential tool for pharmaceutical companies, healthcare product manufacturers, and other industries requiring soft gelatin capsules. Whether you're producing vitamins, fish oils, or even veterinary drugs, our machine can handle the task with ease. Equipped with advanced technology and a user-friendly interface, it offers optimal performance for a wide range of substances, including oils, powders, and pastes, ensuring smooth, accurate, and consistent filling every time.

Welcome to Factop Pharmaceutical Machinery Company. Our soft capsule filling machine is designed to meet the high standards of the pharmaceutical industry, providing your company with an economical, efficient, and reliable solution for filling soft capsules of various substances.

Soft gelatin capsule filling machine features:

Oil bath electric heating spray body
1. The temperalure of the spray body is uniform, the temperalure is stable, and the temperaure fluctuation is quaranteed to be within less than 0.1 '℃ (solved the problems of the ball head and false joint caused by uneven heating temperature)

2. Due to the high temperature accuracy, the film thickness can be reduced by about 0.1mm (saving about 10% of gelatin).

The computer automatically adjusts the injection volume

1. Automatically adiust the loading volume, save time and save raw materials.

2. The loading accuracy is high, and the loading accuracy is less than +- 1%, which greatly reduces the loss of raw materials.

The hardness of the reversing plate, upper and lower bodies, left and right pads reaches HRC60-65. Durable: suitable for users to produce various liquid suspension. Chinese medicine varieties, greatly improving the service life.

The mold lock disk (three-point locking): does not run the line after locking, and also has a fine-tuning function, the operation is very simple.
Trace lubrication system: The ol quantity is autoratically adjusted according to the speed. (Reduce paraffin oil consumption and save costs)
Built-in cold air system, equipped with chiller.

The rubber roler adopts a separate frequency conversion speed regulation: if the qualty of the glue is not good during production, it can be solved by the rubber roller speed regulation.

Cold air setting design in the pill-out area; avoid entanglement of the mesh with the mesh and make the capsule more beautiful.

The lower part of the mold uses a special inclined bucket, which is very convenient to clean.

The feed pump and the machine head are driven outside, and the lubricating oil in the feed pump wll not enter the machine head. (The feed pump is independently sealed)

Main Parameter

Working principle:

The drop type soft capsule machine in the HSR series adopts a unique double-layer nozzle technology. The glue and medicine are respectively passed through precision designed nozzle channels. At the nozzle outlet, the adhesive liquid forms a circular capsule shape due to the surface tension and pressure difference, and at the same time, the liquid medicine is accurately injected into the interior of the capsule. Subsequently, the soft capsule falls into the coolant under the action of gravity and rapidly solidifies into shape. This method can precisely control the size and shape of soft capsules, especially suitable for the production of soft capsules with liquid or semi-solid contents.

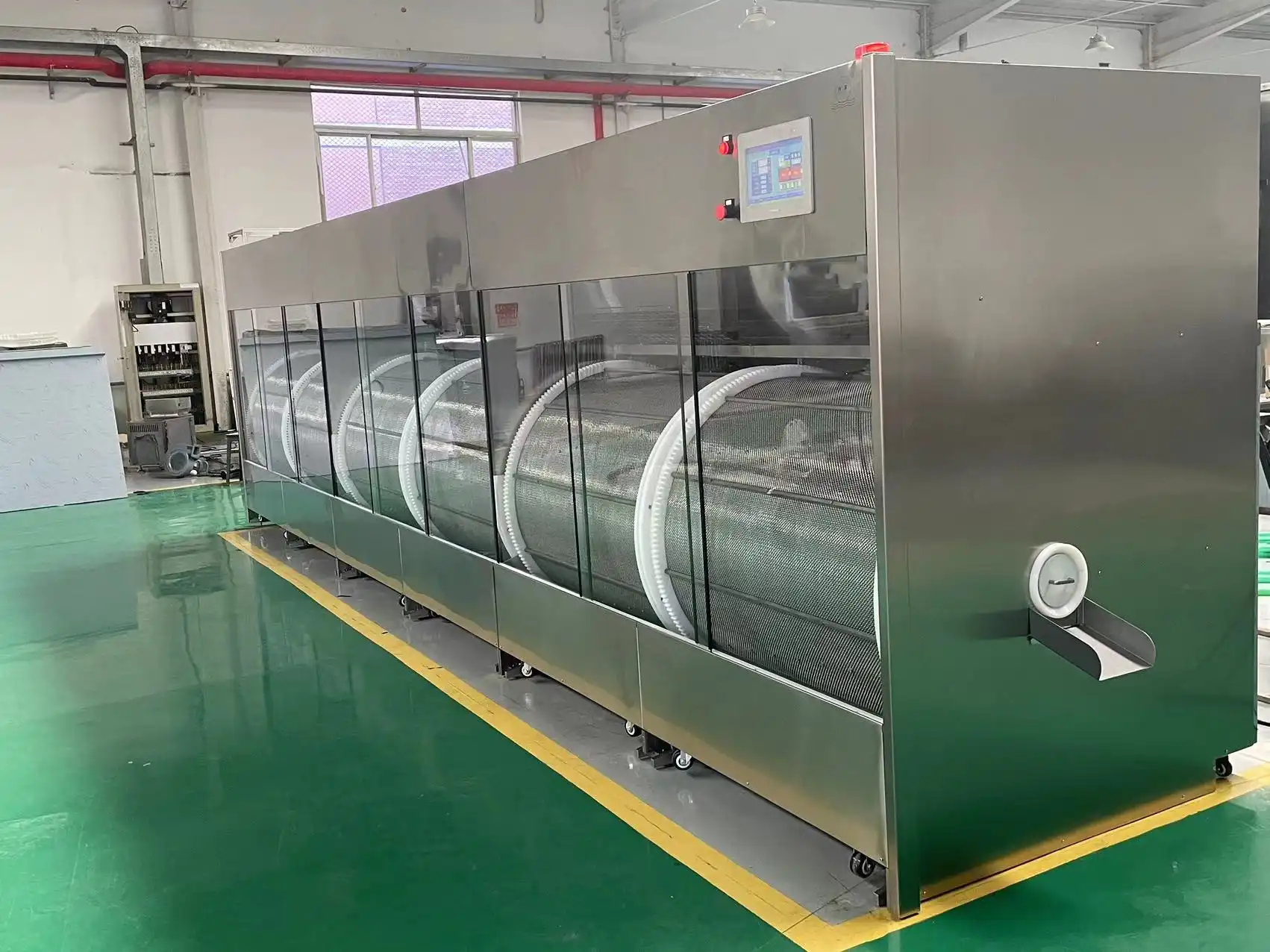

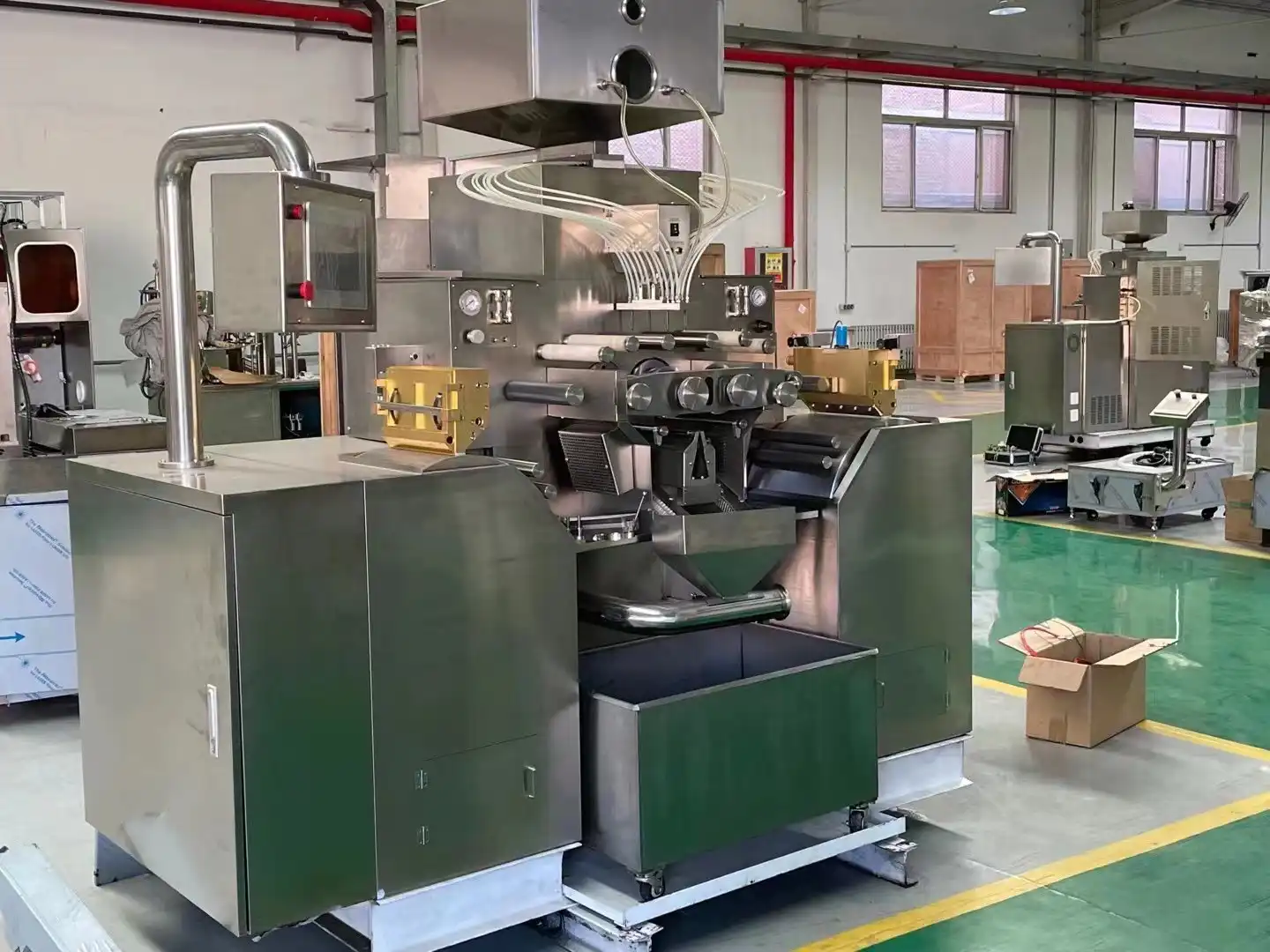

Softgel capsule machine real photos show:

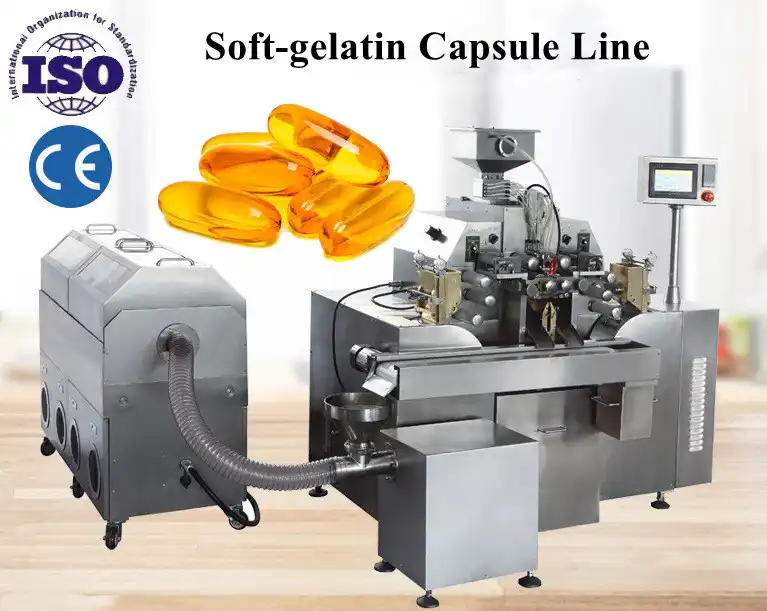

The HSR series Soft Gelatin Capsule Filling Machine is an advanced soft capsule production equipment that integrates high-precision mechanical design, advanced automation control system, and innovative manufacturing processes. It aims to provide efficient, stable, and high-quality soft capsule production solutions for many industries such as pharmaceuticals, health products, cosmetics, etc.

Application Areas

This kind of Soft Gelatin Capsule Filling Machine is widely used in:

• Pharmaceutical Industry (producing capsules with active ingredients)
• Healthcare and Nutraceutical Products (such as vitamins, fish oils)
• Food Processing Industry (for capsules containing flavorings, supplements, etc.)
• Veterinary Medicine (for animal health-related capsules)
• Cosmetics and Personal Care (for oils and extracts in soft gel form)

  ​​​​​​​​​​​​​​

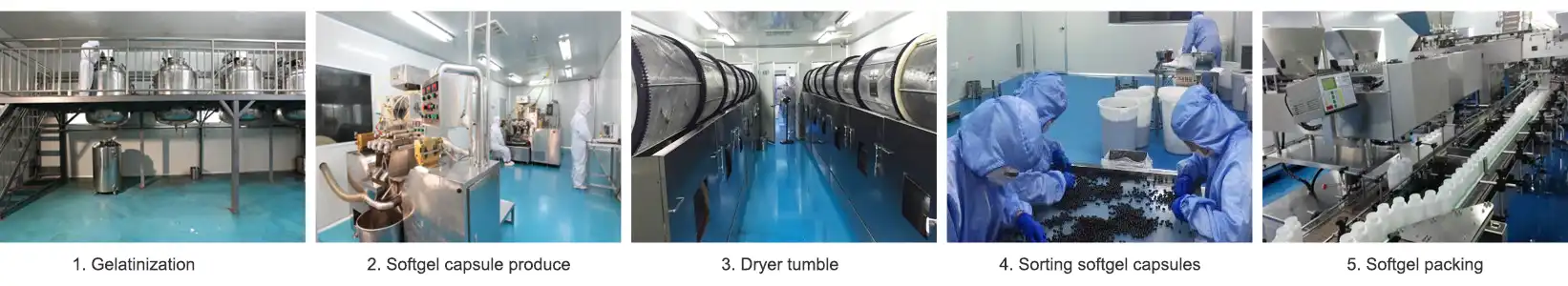

Soft Gelatin Capsule Produce Line Show

1. Raw material: Gelatin, dissolved in a mixing tank and stored; 2. Softgel produce process: Pressing capsules and drying cage drying; 3. Manual capsules picking by lamp inspection machine, fully automatic bottle counting line;

FAQ

Q1: What is the capacity of the Soft Gelatin Capsule Filling Machine?
A1: The machine has an output capacity of up to 80,000 capsules per hour, depending on the model and production requirements.

Q2: Can the machine handle both oil and powder fillings?
A2: Yes, it is versatile and can handle both oil-based and powder-based fillings.

Q3: Is the machine easy to maintain?
A3: Yes, it is designed for easy maintenance, with user-friendly controls and access points for quick servicing and part replacements.

Q4: What certifications does the machine have?
A4: Our machine is certified with ISO 9001:2015, CE, and GMP, ensuring compliance with international quality standards.

Contact Us

For more information about the Soft Gelatin Capsule Filling Machine, please feel free to contact us at michelle@factopintl.com and whatsapp [0086-15589730521]. We look forward to helping you optimize your soft gelatin capsule production!
