How does a single punch tablet press differ from a rotary tablet press?
Single punch tablet presses and rotary tablet presses are two distinct types of pharmaceutical machinery that serve the same fundamental purpose of compressing powder into tablets, but with significant differences in design, operation, and production capacity. The Single Punch Tablet Machine, as the name suggests, utilizes a single set of punches and dies to form tablets one at a time through a reciprocating motion. In contrast, rotary tablet presses feature multiple punch and die sets arranged in a circular pattern on a rotating turret, allowing for continuous production of multiple tablets simultaneously. This fundamental design difference impacts everything from production speed and efficiency to maintenance requirements and initial investment costs. Understanding these distinctions is crucial for pharmaceutical manufacturers, food processing companies, and other industries requiring tablet compression technology to make informed decisions that align with their production needs, budget constraints, and quality standards.
Design and Operational Mechanics
Basic Structural Differences

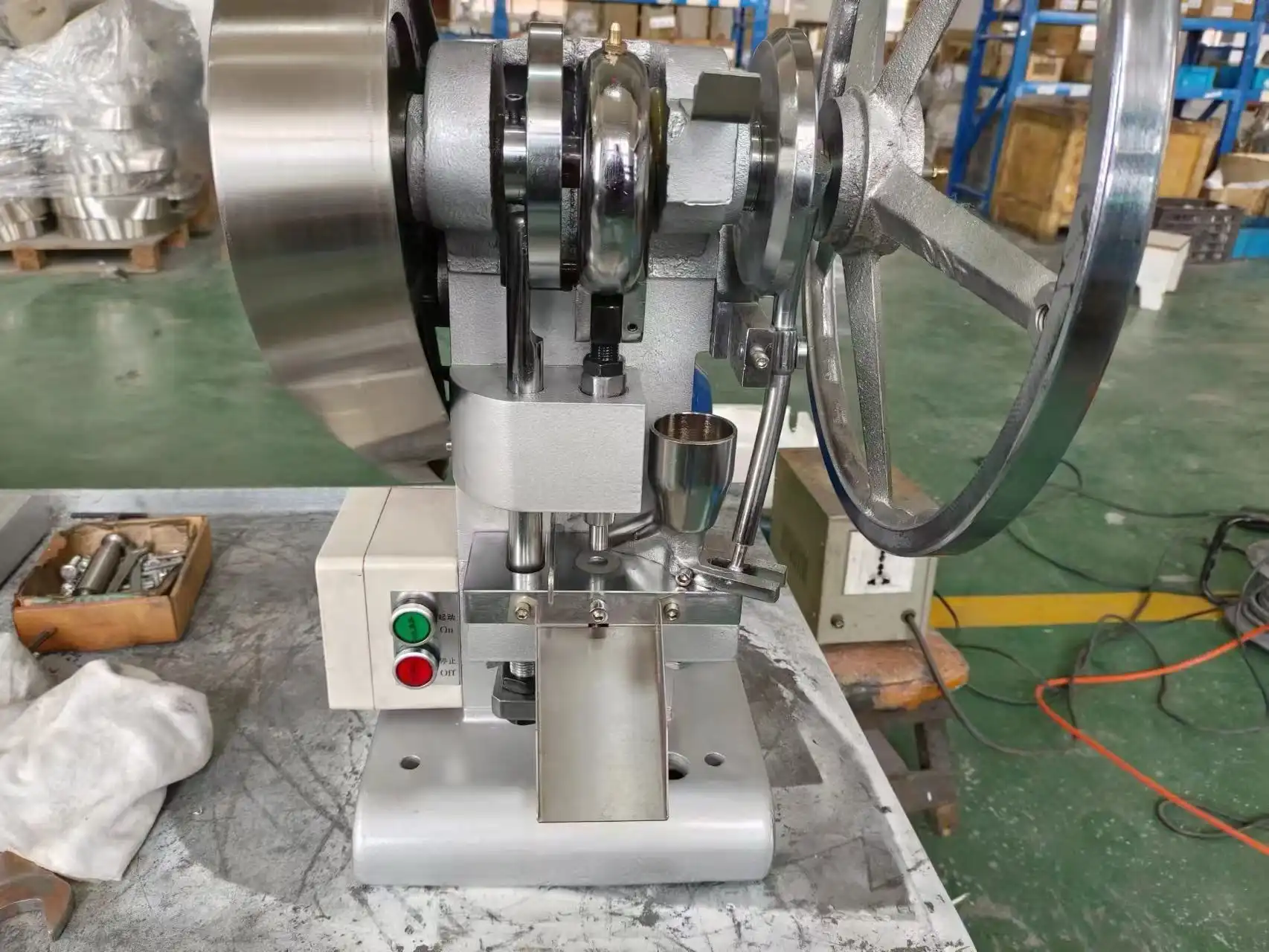

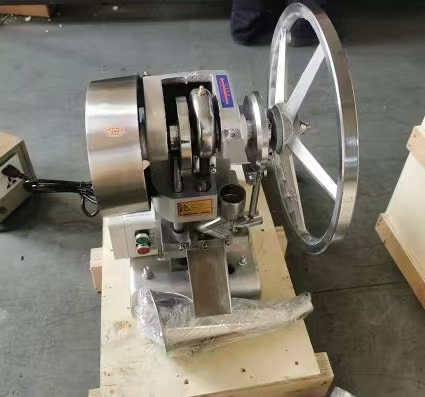

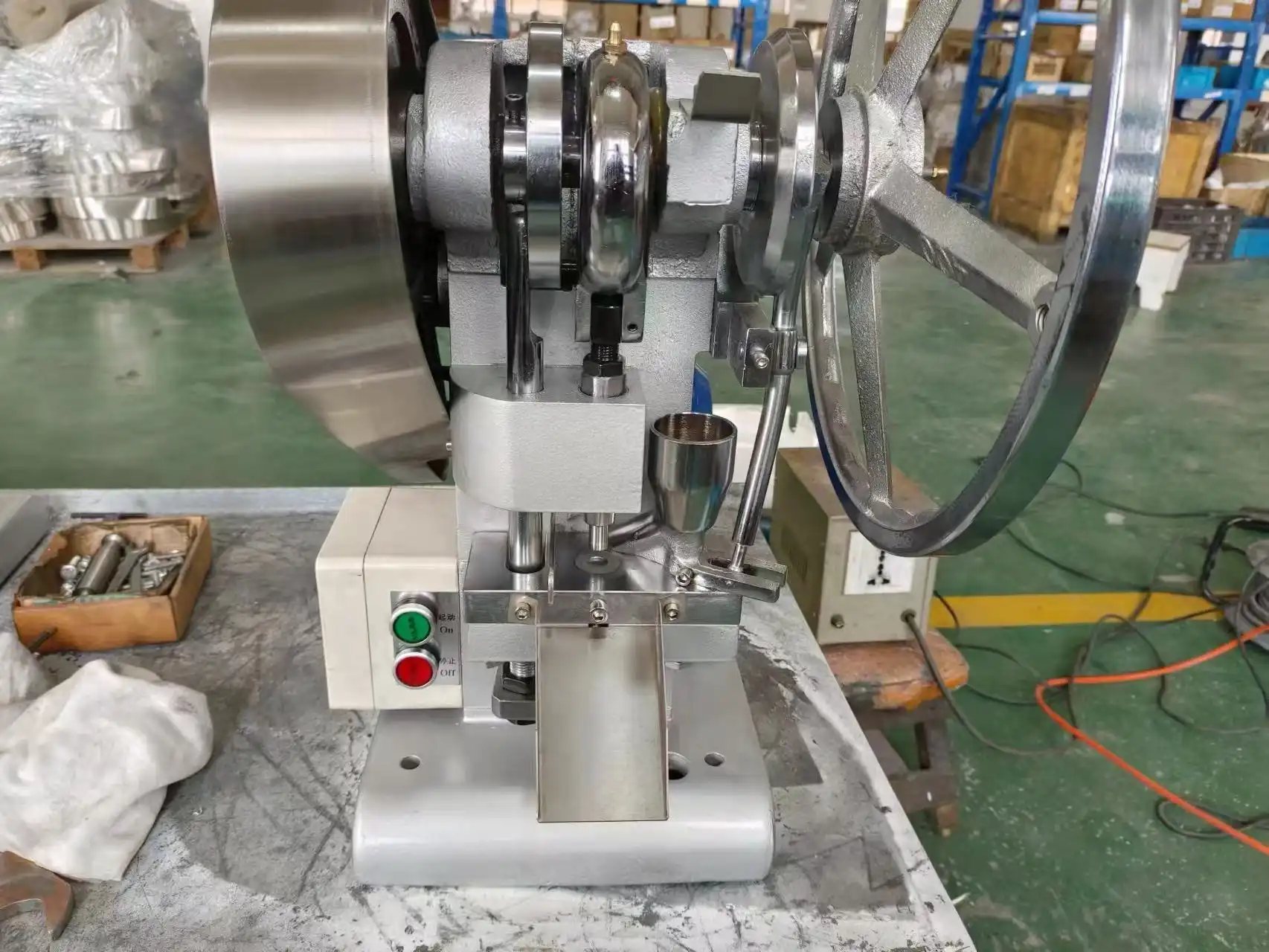

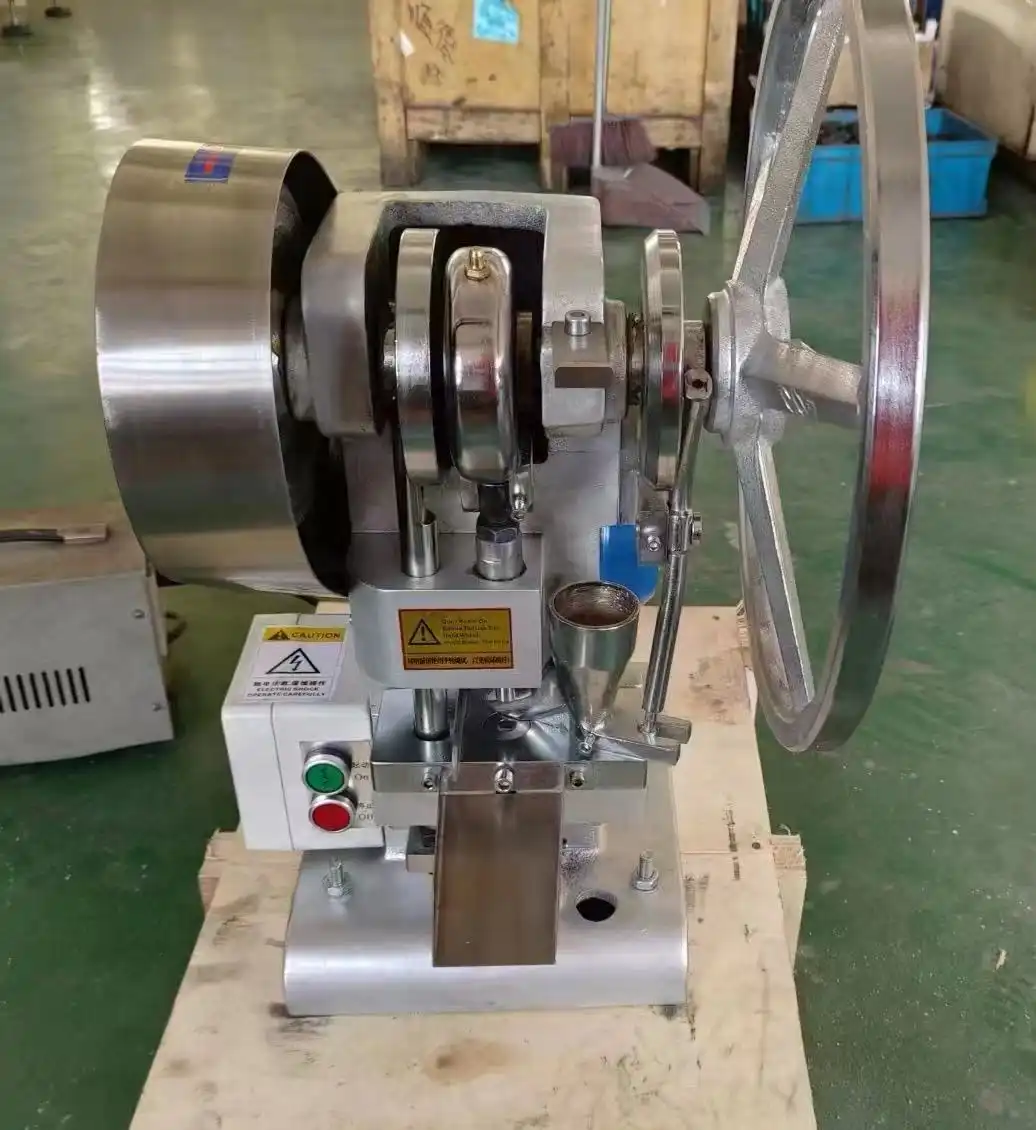

The Single Punch Tablet Machine exhibits a relatively simple design compared to its rotary counterpart. At its core, it consists of a single set of upper and lower punches aligned with a die cavity, all mounted within a robust frame. The punches operate through a vertical reciprocating motion, with the upper punch descending to compress the powder while the lower punch initially supports the powder and then rises to eject the finished tablet. This straightforward mechanism makes the Single Punch Tablet Machine highly accessible for operators to understand and maintain. Models like Factop's TDP1.5 exemplify this design, featuring a compact footprint of 720×440×750 mm and weighing approximately 65 kg. The simplicity of this design means fewer moving parts, which translates to reduced mechanical complexity and a lower likelihood of component failure. Additionally, the machine's physical accessibility enables quick cleaning and part replacement, minimizing downtime during maintenance operations. The structural simplicity also facilitates visual inspection of the compression process, allowing operators to monitor tablet formation directly and make immediate adjustments if necessary.
Compression Cycle Mechanics
In the Single Punch Tablet Machine, the compression cycle follows a distinct sequence that directly impacts production efficiency. The cycle begins with the feeding stage, where the powder material is gravity-fed from a hopper into the die cavity. Once the die is filled, the upper punch descends while the lower punch remains stationary, applying up to 15 kN of pressure (in models like the TDP1.5) to compress the powder into a solid tablet. Following compression, the upper punch retracts, and the lower punch rises to eject the tablet from the die cavity. The formed tablet is then swept away by a deflector, and the cycle repeats. This entire process occurs sequentially rather than simultaneously, with each step completed before the next begins. The Single Punch Tablet Machine's cycle rate typically allows for production capacities of 4500-6000 tablets per hour, which, while lower than rotary presses, offers precise control over individual tablet formation. This mechanical approach enables operators to fine-tune compression parameters for each tablet, ensuring consistent quality even with challenging formulations that might require specialized compression profiles.
Power Requirements and Energy Efficiency
The Single Punch Tablet Machine operates with notably lower power requirements compared to rotary tablet presses, reflecting its simpler mechanical operation. Typically equipped with a motor rating of approximately 0.37 kW, as seen in Factop's TDP1.5 model, these machines consume significantly less electricity during operation. This reduced power requirement stems from the machine's sequential operation, where energy is expended on compressing one tablet at a time rather than simultaneously powering multiple compression stations. The lower energy consumption makes Single Punch Tablet Machines particularly suitable for small laboratories, research facilities, and production environments where power infrastructure may be limited. Additionally, the energy efficiency translates to lower operational costs over the machine's lifetime, an important consideration for startup pharmaceutical companies or facilities in regions with high electricity costs. The machine's efficient power utilization also generates less heat during operation, potentially benefiting temperature-sensitive formulations and reducing cooling requirements in the production environment.
Production Capacity and Efficiency
Output Volume Comparison
The Single Punch Tablet Machine, while exceptionally reliable, operates at a significantly lower production volume compared to rotary presses. With a typical output capacity ranging from 4,500 to 6,000 tablets per hour, as demonstrated by Factop's TDP1.5 model, these machines are purposefully designed for scenarios where moderate production volumes are sufficient. This output capacity makes them ideally suited for small to medium pharmaceutical operations, research laboratories developing new formulations, or companies producing specialized tablets in limited quantities. The Single Punch Tablet Machine's production rate directly correlates with its mechanical design, where tablets are produced sequentially rather than simultaneously. While this sequential production method limits overall throughput, it provides operators with enhanced control over the compression process for each individual tablet. For organizations transitioning from manual tablet preparation to mechanical production, or those requiring flexibility to produce multiple formulations in smaller batches, the Single Punch Tablet Machine offers an optimal balance between automation and manageable output volumes that align with downstream packaging and quality control capabilities.
Batch Size Flexibility
The Single Punch Tablet Machine excels in production environments requiring frequent formulation changes or small batch processing. With quick tooling changes and minimal material waste during startup and shutdown phases, these machines offer exceptional flexibility for manufacturers working with multiple products or formulations. When producing small batches, every gram of pharmaceutical material matters, especially with expensive active ingredients. The Single Punch Tablet Machine minimizes material loss during setup and changeover, making it economically viable for producing limited quantities as small as a few hundred tablets. This characteristic is particularly valuable for pharmaceutical R&D departments, clinical trial material production, or rare disease medications where batch sizes are inherently small. Additionally, the machine's simplified cleaning procedures between batches—owing to fewer product contact surfaces compared to rotary presses—reduce cross-contamination risks and minimize changeover times. Factop's Single Punch Tablet Machine accommodates various tablet shapes and patterns through interchangeable punch and die sets, allowing manufacturers to produce tablets up to 12mm in diameter with a maximum thickness of 6mm, providing versatility across different product lines without significant reconfiguration.
Labor and Operational Requirements
Operating a Single Punch Tablet Machine requires relatively minimal technical expertise compared to more complex tablet press systems, making it accessible for smaller operations with limited specialized staff. The straightforward mechanical design of the Single Punch Tablet Machine, with fewer moving parts and simpler adjustment mechanisms, enables operators to become proficient in its use after basic training. This accessibility is particularly beneficial for startups, academic institutions, or small pharmaceutical companies that may not employ dedicated tablet press specialists. The machine's operational simplicity extends to maintenance requirements, with routine tasks like cleaning, lubrication, and punch inspection being easily performed by operators with limited technical background. Factop's TDP1.5 model exemplifies this user-friendly approach, featuring accessible components and clear operational controls. Additionally, the Single Punch Tablet Machine typically requires only a single operator for full functionality, from material loading to finished tablet collection, further reducing labor costs compared to rotary systems that may require multiple personnel for efficient operation. This reduced staffing requirement, combined with the machine's compact footprint of approximately 720×440×750 mm, makes the Single Punch Tablet Machine an economical choice for facilities with space and personnel constraints.
Applications and Practical Considerations
Industry-Specific Applications
The Single Punch Tablet Machine finds diverse applications across multiple industries beyond traditional pharmaceuticals. In the pharmaceutical sector, it serves as an ideal solution for producing specialized medications, clinical trial materials, and orphan drugs where production volumes are inherently limited. Laboratories utilize these machines for formulation development and stability testing, where the ability to produce small batches of tablets with varying compositions is invaluable. In the food processing industry, the Single Punch Tablet Machine enables the production of candy tablets, flavored lozenges, and compressed food supplements with precise control over ingredients and compression force. Health supplement manufacturers leverage these machines to produce calcium tablets, vitamins, and herbal formulations, benefiting from the flexibility to switch between different formulations quickly. Factop's Single Punch Tablet Machine, with its maximum tablet pressure of 15 kN and ability to produce tablets up to 12mm in diameter, meets the requirements for most standard supplement formulations. Additionally, veterinary medicine producers utilize these machines for animal health products, while chemical industries employ them for products like cleaning tablets, water treatment chemicals, and agricultural applications. The machine's versatility is further enhanced by customizable punch and die sets, allowing for tablets of various shapes and imprints according to specific brand requirements.
Investment and Return Considerations
The Single Punch Tablet Machine represents a significantly lower initial capital investment compared to rotary tablet presses, making it accessible for organizations with budget constraints or those entering tablet production for the first time. This cost advantage extends beyond the initial purchase price to include reduced expenses for installation, utilities, and facility modifications. With a compact footprint of 720×440×750 mm and weighing approximately 65 kg, Factop's TDP1.5 model requires minimal floor space and can often be accommodated within existing laboratory or small production facilities without major infrastructure changes. The economic analysis of return on investment reveals that Single Punch Tablet Machines typically achieve break-even points more quickly for small to medium production volumes, despite their lower hourly output. This favorable ROI timeline stems from lower operational costs, including reduced power consumption (0.37 kW motor), minimal maintenance expenses, and decreased labor requirements. For startups and small businesses, this accelerated return timeline preserves capital for other critical areas like product development and marketing. Additionally, the machine's versatility in producing various tablet formulations allows companies to respond dynamically to market demands without investing in multiple specialized equipment pieces. Factop strengthens this value proposition by offering comprehensive after-sales support, including free accessories within the first year of purchase, technical assistance, and rapid response to maintenance needs.
Quality Control and Compliance Aspects
Despite its simpler design, the Single Punch Tablet Machine delivers exceptional quality control capabilities that meet stringent pharmaceutical standards. The machine's single-tablet production approach allows for precise monitoring of compression parameters for each tablet, ensuring consistent weight, hardness, and dissolution properties throughout the batch. Factop's Single Punch Tablet Machine complies with GMP standards and holds both ISO9001:2015 certification and CE certification, making it suitable for regulated pharmaceutical production environments worldwide. The machine's design facilitates implementation of process analytical technology (PAT) for real-time quality monitoring, allowing operators to observe compression dynamics directly and make immediate adjustments when necessary. This direct observation capability is particularly valuable when working with challenging formulations that exhibit sensitivity to compression force variations. The Single Punch Tablet Machine's simplified cleaning procedures between batches reduce cross-contamination risks, a critical consideration for facilities producing multiple products or working with potent compounds. Additionally, the straightforward mechanical design minimizes variables that could impact tablet quality, making validation processes more straightforward compared to complex rotary systems. For organizations subject to regulatory inspections, the machine's operational transparency simplifies documentation of the compression process and demonstration of consistent manufacturing control, supporting both initial regulatory submissions and ongoing compliance activities.
Conclusion
The Single Punch Tablet Machine offers distinct advantages in terms of flexibility, initial investment, and operational simplicity compared to rotary tablet presses, making it the ideal choice for small to medium-scale production, research facilities, and companies with diverse product portfolios. While rotary presses excel in high-volume manufacturing scenarios, the Single Punch Tablet Machine provides an accessible entry point into tablet production with minimal compromise on quality.
At Factop Pharmacy Machinery Trade Co., Ltd., we bring years of expertise in solid pharmaceutical processing and packaging solutions. Our GMP-certified facilities, mature technical team, and comprehensive after-sales support ensure your tablet production needs are met with excellence. Ready to transform your tablet manufacturing process? Contact us today at michelle@factopintl.com to discuss how our Single Punch Tablet Machine can elevate your production capabilities with fast delivery, expert installation, and ongoing technical support.
