How does a single punch tablet press work?

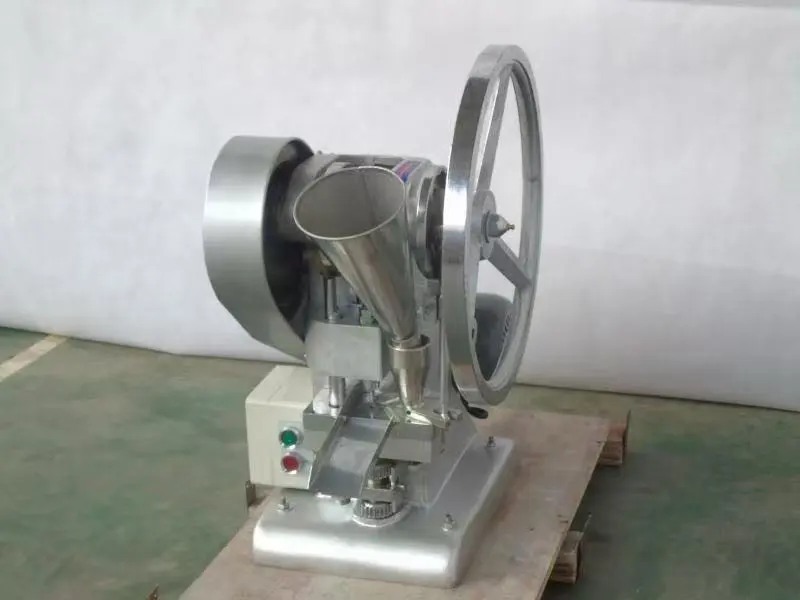

The single punch tablet press represents a fundamental technology in pharmaceutical manufacturing, offering a straightforward yet precise method for tablet production. This machinery operates on a simple mechanical principle where powder is compressed between two punches within a die to form solid tablets. The Single Punch Tablet Machine from Factop Pharmacy Machinery Trade Co., Ltd. exemplifies this technology with its efficient design that ensures consistent tablet production. Unlike more complex rotary presses, the single punch design focuses on quality over quantity, making it ideal for smaller production batches, research applications, and specialized tablet formulations where precision is paramount.
Basic Operating Principles of Single Punch Tablet Machines
The single punch tablet press operates through a systematic sequence of mechanical actions that transform loose powder into compact tablets. Understanding these fundamental principles helps operators maximize machine performance and maintain consistent tablet quality.
Mechanical Components and Their Functions

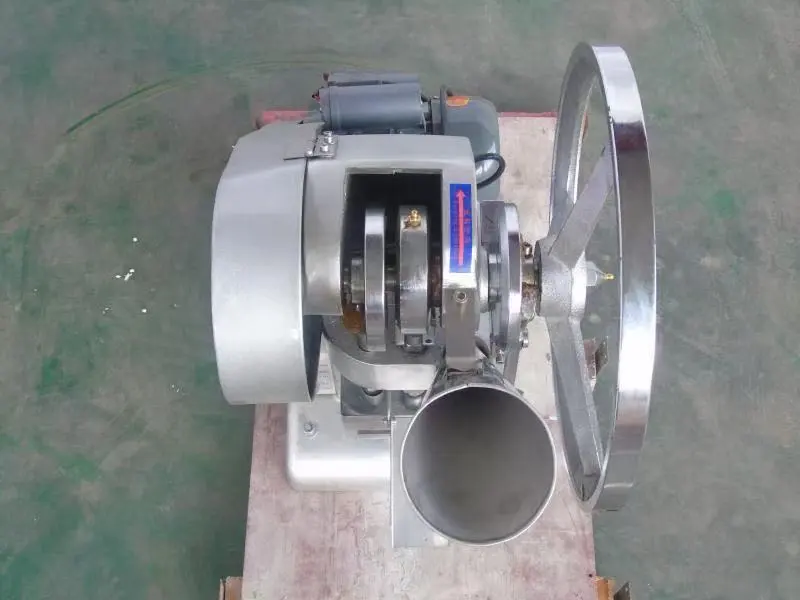

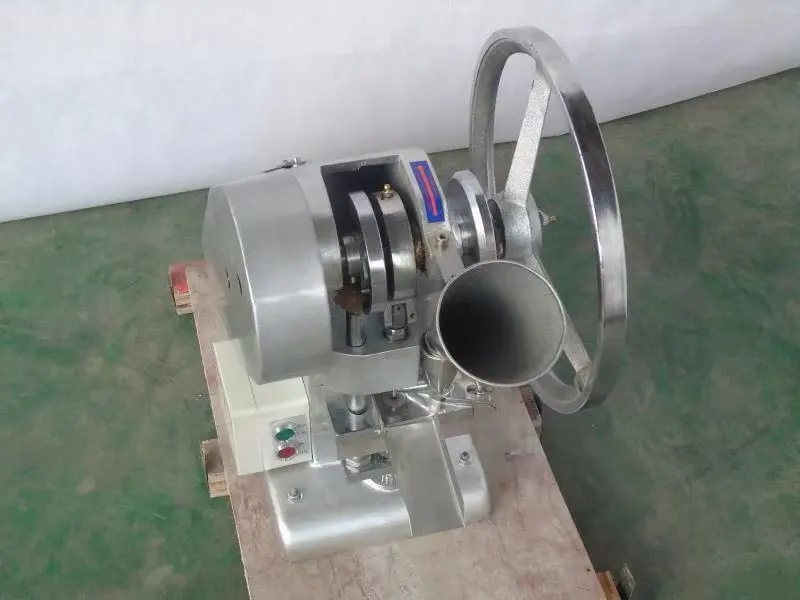

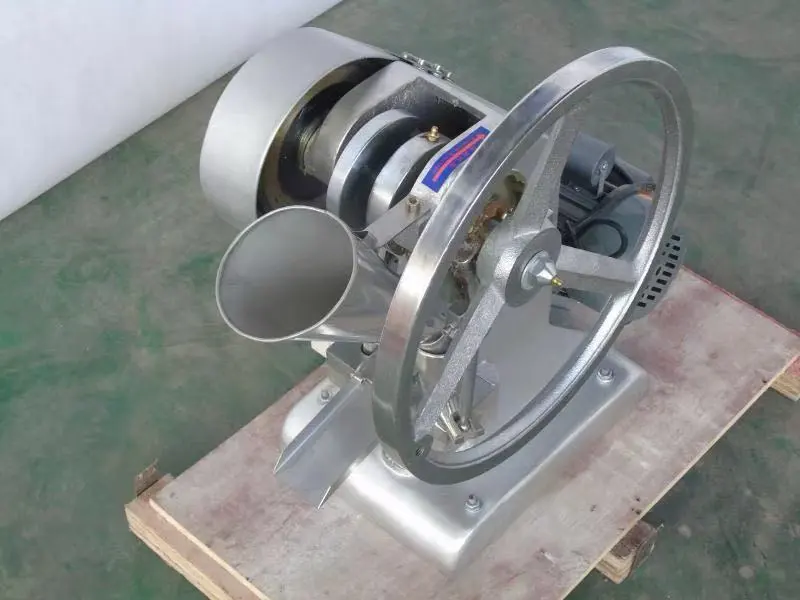

The Single Punch Tablet Machine consists of several critical components that work together to create the finished tablet. The upper and lower punches are precision-machined steel components that apply the compression force to the powder material. The die, which holds the powder during compression, is precisely sized to create tablets of the desired diameter. The hopper feeds powder into the die cavity through a feed frame that ensures consistent powder distribution. The cam track system guides the punches through their vertical movement cycle, while the drive motor provides the mechanical power necessary for operation. These components in the Single Punch Tablet Machine are designed with tight tolerances to ensure that each tablet meets exact specifications for weight, thickness, and hardness. The Model TDP1.5 from Factop features robust components manufactured to GMP standards, with a maximum press diameter of 12mm and a tablet pressure capability of up to 15 kN, ensuring that even challenging formulations can be successfully compressed into pharmaceutically elegant tablets.
The Compression Cycle Explained
The compression cycle of a Single Punch Tablet Machine involves four distinct phases that occur in sequence. First, the die filling stage occurs when the lower punch descends, creating a cavity that fills with powder from the hopper. Next, during the compression stage, the upper punch descends while the lower punch rises slightly, applying pressure from both directions to create a densely compressed tablet. The maximum tablet pressure of 15 kN in the TDP1.5 model ensures optimal compaction for various formulations. The third phase is decompression, where the upper punch begins to withdraw, releasing pressure on the tablet. Finally, during ejection, the lower punch rises to push the finished tablet out of the die, where it can be collected. This entire cycle repeats at a rate capable of producing 4500-6000 tablets per hour in the Factop Single Punch Tablet Machine. The precision of this cycle ensures consistent tablet weight, thickness, and hardness, which are critical quality attributes in pharmaceutical manufacturing. The machine's design allows for adjustment of compression force, dwell time, and ejection height to accommodate different formulation requirements.
Quality Control Mechanisms
The Single Punch Tablet Machine incorporates several quality control mechanisms to ensure tablet consistency. Weight variation is controlled through precise adjustment of the lower punch position, which determines the amount of powder that fills the die cavity. A depth adjustment mechanism allows operators to fine-tune this setting to achieve the target tablet weight, with a maximum tablet thickness capability of 6mm in the TDP1.5 model. Hardness control is achieved through compression force adjustment, which can be calibrated to deliver consistent tablet density and hardness. Force monitoring systems can be incorporated to provide real-time feedback on compression performance. The ejection mechanism is designed to minimize stress on the tablet during removal from the die, preventing lamination or capping defects. Factop's Single Punch Tablet Machine is built to CE and ISO9001 standards, ensuring that these quality control mechanisms meet international manufacturing requirements. Regular calibration of these mechanisms is essential for maintaining tablet quality, particularly when processing different formulations or changing between product batches.
Advanced Features and Operational Efficiency
Modern single punch tablet presses incorporate numerous advanced features that enhance their operational efficiency, productivity, and versatility. These innovations make them valuable assets in various production environments.
Tooling Compatibility and Customization Options
The Single Punch Tablet Machine from Factop offers exceptional flexibility through its compatible tooling system. Standard TSM B-type tooling allows pharmaceutical manufacturers to produce tablets in various shapes and sizes without significant machine modifications. Custom punch and die sets are available for unique tablet designs, including specialty shapes, logo embossing, and score lines. Factop specifically mentions their ability to "offer custom different shapes and patterns punch die as your request," highlighting this flexibility as a key advantage. Material options for tooling include various grades of tool steel, with specialized coatings available for processing sticky or abrasive formulations. The maximum tablet diameter of 12mm allows for a wide range of standard pharmaceutical tablet sizes, while the tooling change process has been engineered for rapid completion, minimizing downtime between production runs. This versatility makes the Single Punch Tablet Machine an ideal solution for contract manufacturers who must frequently switch between different product formulations and tablet specifications.
Maintenance Requirements and Best Practices
Proper maintenance is essential for ensuring the longevity and consistent performance of a Single Punch Tablet Machine. Daily cleaning procedures include wiping down exposed surfaces, clearing powder residue from the die table, and inspecting punches and dies for signs of wear. The compact dimensions of the TDP1.5 model (720×440×750 mm) facilitate easy access to components requiring regular maintenance. Weekly maintenance tasks involve lubricating moving parts, checking drive belts for proper tension, and calibrating weight adjustment mechanisms. Monthly procedures should include thorough inspection of punch tips for signs of wear or damage, as these directly impact tablet quality. The 65 kg weight of the machine makes it relatively manageable for repositioning during comprehensive cleaning operations. Factop provides detailed maintenance documentation with each machine and offers replacement parts to support ongoing operations. Implementing a preventive maintenance schedule based on operational hours rather than calendar time ensures optimal machine performance, particularly important when the machine is operated at its maximum capacity of 6000 tablets per hour. Proper maintenance not only extends equipment life but also minimizes production variability and reduces the risk of unexpected downtime.
Energy Efficiency and Operational Costs
The Single Punch Tablet Machine is designed for remarkable energy efficiency, with the TDP1.5 model operating on just 0.37 kW of power. This modest energy requirement translates to lower operational costs compared to larger rotary presses, making it an economical choice for small to medium production volumes. The direct compression mechanism minimizes energy losses through mechanical transmission, optimizing power utilization efficiency. When calculating total operational costs, it's important to consider not only energy consumption but also labor requirements, maintenance expenses, and tooling replacement. The machine's straightforward operation reduces training requirements for operators, further controlling labor costs. The compact footprint of 720×440×750 mm minimizes space requirements, allowing efficient use of production floor area. The Single Punch Tablet Machine's simple mechanical design, with fewer moving parts than rotary alternatives, reduces wear-related maintenance expenses and extends component lifespans. When evaluated on a cost-per-tablet basis, factoring in all operational expenses, the Single Punch Tablet Machine offers an attractive value proposition for appropriate production volumes, particularly for pharmaceutical startups, research institutions, and companies producing specialty tablets in smaller quantities.
Applications and Industry Adaptability
The versatility of single punch tablet presses makes them valuable across multiple industries, each with unique requirements and applications. From pharmaceuticals to food processing, these machines demonstrate remarkable adaptability.
Pharmaceutical and Nutraceutical Applications
The Single Punch Tablet Machine serves as a cornerstone technology in pharmaceutical and nutraceutical manufacturing. In pharmaceutical applications, it excels at producing clinical trial batches where smaller quantities of precisely controlled tablets are required for initial human studies. The machine's ability to produce up to 6000 tablets per hour is perfect for these limited production runs. For orphan drugs treating rare conditions, where production volumes are inherently lower, the Single Punch Tablet Machine offers a cost-effective manufacturing solution that doesn't sacrifice quality. In nutraceutical production, the machine accommodates the wide variety of raw materials used in health supplements, from calcium and vitamins to herbal extracts. Its 15 kN maximum pressure capability ensures that even challenging formulations can be successfully compressed. Research and development departments particularly value the single punch design for formulation development work, where numerous small batches with varying compositions must be produced and evaluated. The precise control over compression parameters allows formulators to optimize tablet properties systematically. The machine's CE and ISO9001 certifications ensure that tablets produced meet stringent quality and safety standards required for human consumption, making the Single Punch Tablet Machine a reliable choice for both pharmaceutical and nutraceutical manufacturers focused on product quality and regulatory compliance.
Food and Confectionery Industry Uses
The food and confectionery industry has embraced the Single Punch Tablet Machine for creating various compressed edible products. Candy tablets, including mints, fruit-flavored sweets, and effervescent products, can be efficiently produced using the machine's precise compression capabilities. With a production capacity of 4500-6000 pieces per hour, small to medium candy manufacturers can meet market demands without investing in larger, more expensive equipment. The ability to create custom punch dies allows confectionery companies to produce uniquely shaped tablets that enhance brand recognition and consumer appeal. Flavor concentrates in tablet form, used in cooking or beverage preparation, benefit from the consistent weight control achievable with the Single Punch Tablet Machine. Nutritional food supplements, including functional food tablets containing probiotics or specialized nutrients, require precise handling to maintain ingredient viability—the controlled compression process of the Single Punch Tablet Machine preserves these sensitive components. The machine's GMP certification ensures that hygiene standards for food production are met, while its stainless steel contact parts prevent contamination and facilitate thorough cleaning between product runs. For artisanal food producers creating specialty products in limited quantities, the Single Punch Tablet Machine offers an ideal balance of production capacity, quality control, and investment level, allowing these businesses to create professional-quality tablets without industrial-scale equipment.
Research and Development Capabilities
The Single Punch Tablet Machine serves as an invaluable tool in research and development settings, offering a platform for scientific innovation in tablet formulation. Academic institutions utilize these machines to teach pharmaceutical technology principles, allowing students to observe and control the tablet compression process firsthand. With its maximum tablet diameter of 12mm and adjustable thickness up to 6mm, researchers can produce experimental formulations in a variety of sizes for evaluation. Pharmaceutical R&D departments rely on Single Punch Tablet Machines for exploring new excipient combinations, active ingredient loading capacities, and release profile modifications. The precise control over compression force, up to 15 kN, enables systematic studies of how pressure affects tablet properties such as dissolution rate, hardness, and friability. Contract research organizations (CROs) appreciate the machine's flexibility when working on multiple client projects with diverse requirements. The relatively small footprint of 720×440×750 mm makes the Single Punch Tablet Machine suitable for installation in limited laboratory spaces, while its 65 kg weight allows for relocation as research priorities change. When developing generic equivalents of established medications, formulators use the Single Punch Tablet Machine to create test batches that can be compared against reference products. The machine's ability to produce tablets with consistent physical properties ensures that experimental variables are controlled, allowing researchers to draw valid conclusions about formulation performance. This reliability makes the Single Punch Tablet Machine from Factop an essential instrument for advancing pharmaceutical science and developing the medications of tomorrow.
Conclusion
The Single Punch Tablet Machine represents an essential technology for tablet manufacturing, offering precision, reliability, and versatility across multiple industries. From pharmaceutical applications to food production and research settings, its straightforward mechanical operation delivers consistent results while maintaining operational efficiency. The TDP1.5 model from Factop Pharmacy Machinery Trade Co., Ltd. exemplifies these qualities with its robust design and impressive specifications.
Are you ready to elevate your tablet production capabilities? Factop brings years of experience in pharmaceutical equipment manufacturing, with GMP-certified facilities and an expert technical team ready to support your operations. Our machines feature robust wooden export packaging, FAT testing support, and on-site installation assistance. Plus, we include free accessories within the first year after purchase. Contact us today at michelle@factopintl.com to discover how our Single Punch Tablet Machine can transform your production process.
