What are the different types of tablet die presses?
Tablet die presses are essential machinery in pharmaceutical manufacturing, playing a crucial role in converting powder materials into solid dosage forms. These sophisticated pieces of equipment combine precise mechanical engineering with advanced control systems to produce tablets of consistent quality and specifications. The technology behind tablet die presses has evolved significantly over the years, offering various types and configurations to meet different production needs and requirements. Understanding the different types of tablet die presses is fundamental for pharmaceutical manufacturers to make informed decisions about their production capabilities.
Types of Tablet Die Press Configurations
Single-Station Tablet Die Presses
The single-station tablet die press represents the most basic and fundamental design in tablet compression technology. These machines, exemplified by models like the ZP-5B with its 5-punch die configuration and 60KN maximum pressure capability, are particularly valuable for research and development applications and small-batch production runs. Their straightforward design, featuring stainless steel and iron steel construction, makes them ideal for preliminary formulation studies and product development phases. The single-station press operates by completing one compression cycle at a time, allowing for precise control over compression parameters and detailed analysis of tablet formation processes. This configuration is especially beneficial when working with expensive active pharmaceutical ingredients or when frequent formulation adjustments are necessary during the development phase.
Rotary Tablet Die Presses

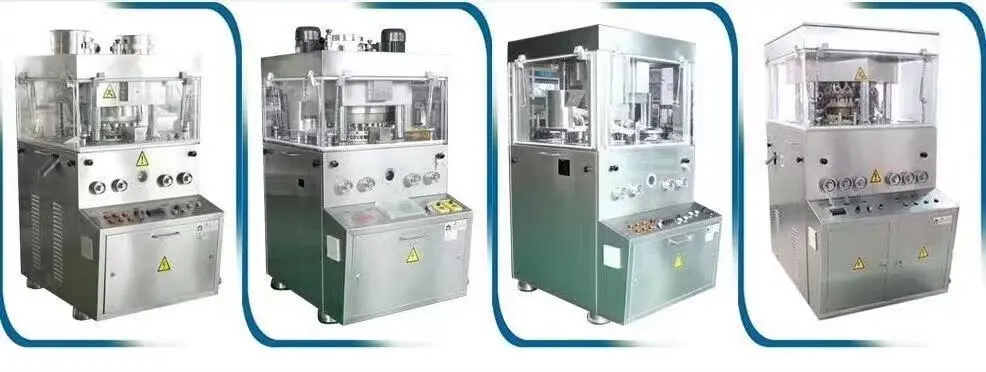

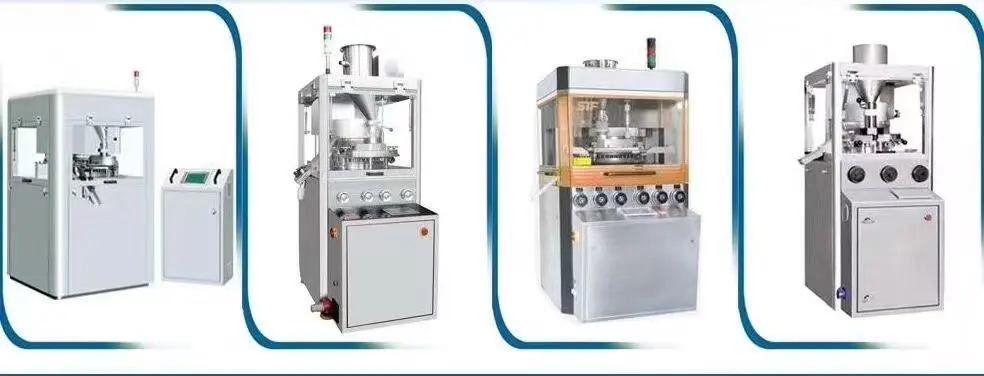

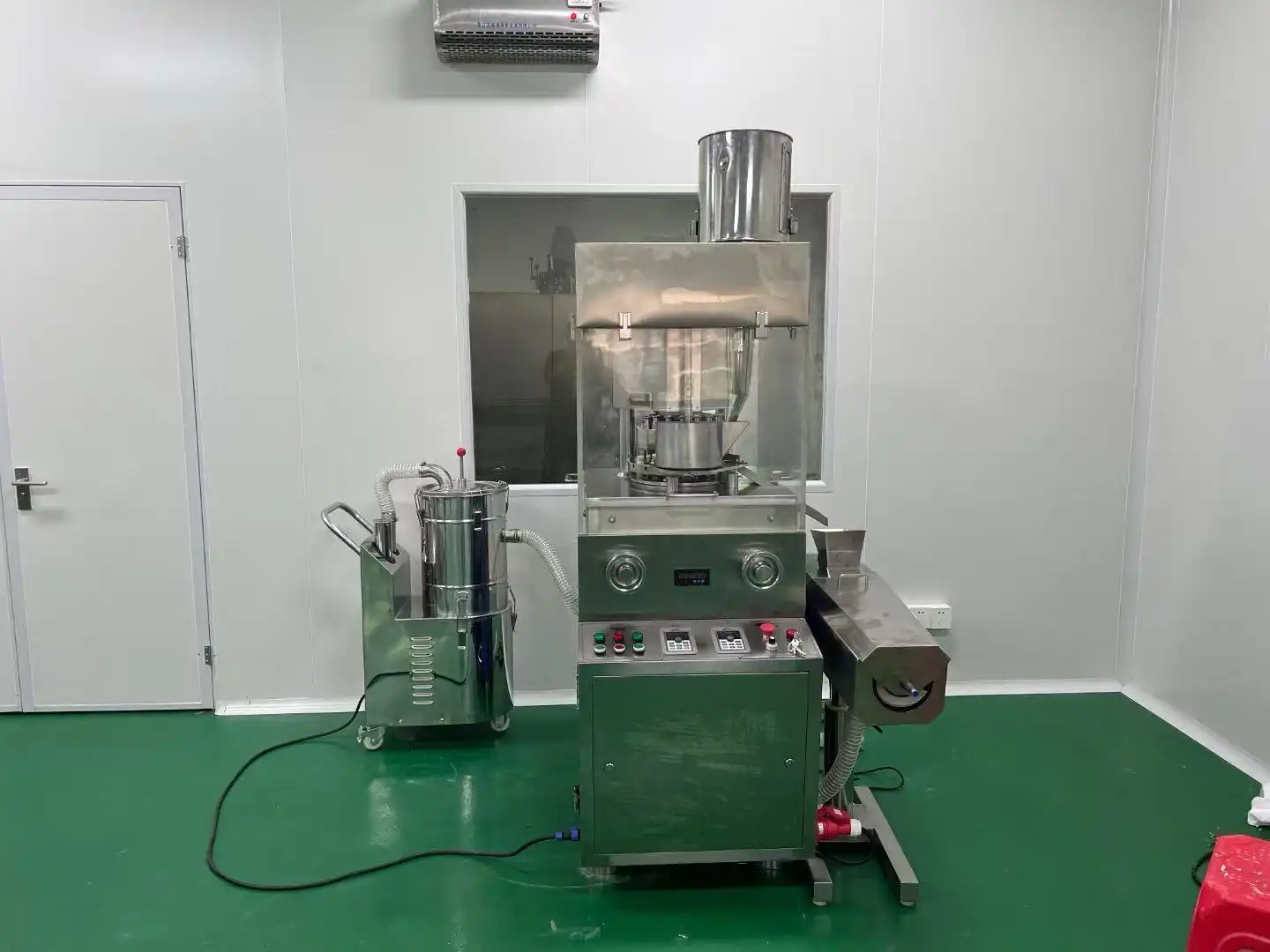

Rotary tablet die presses represent a significant advancement in pharmaceutical manufacturing technology, incorporating multiple punch stations arranged in a circular configuration. These machines operate continuously, with each station performing compression cycles as the turret rotates. Modern rotary presses can feature anywhere from 16 to 60 stations, dramatically increasing production capacity compared to single-station models. The design includes sophisticated features such as automated weight control systems, force feeders for optimal powder distribution, and precise pressure monitoring capabilities. This configuration is particularly well-suited for high-volume production environments where consistent tablet quality and efficient operation are paramount concerns.
Multi-Layer Tablet Die Presses
Multi-layer tablet die presses represent the cutting edge of pharmaceutical compression technology, designed specifically for producing tablets with multiple distinct layers or cores. These sophisticated machines incorporate several compression stages within a single unit, allowing for the precise layering of different formulations. The technology enables manufacturers to create complex dosage forms with controlled release properties or combination products containing multiple active ingredients. Each layer can be compressed individually before the final compression step, ensuring optimal bonding between layers while maintaining the distinct characteristics of each component.
Advanced Features and Technologies
Precision Control Systems
The modern tablet die press incorporates sophisticated control systems that ensure precise operation and consistent product quality. These systems include advanced force control mechanisms that maintain optimal compression forces throughout the production run. Load cells and displacement sensors provide real-time feedback on compression parameters, allowing for immediate adjustments when necessary. The integration of automated control systems, similar to those found in the ZP-5B model with its built-in counter function, enables operators to monitor and adjust critical process parameters in real-time, ensuring consistent tablet quality throughout production runs.
Material Handling Innovations
Contemporary tablet die presses feature innovative material handling systems designed to optimize powder flow and tablet formation. These systems include specialized force feeders that ensure uniform powder distribution across the die cavity, reducing weight variation in the final product. Advanced powder feeding mechanisms, constructed from high-grade stainless steel and iron steel components, minimize product waste and ensure consistent tablet weight control. The integration of automated powder feeding systems with precise volume control helps maintain optimal production efficiency while reducing operator intervention requirements.
Quality Assurance Features
Modern tablet die presses incorporate comprehensive quality assurance features that monitor and control critical quality attributes throughout the production process. These systems include integrated weight checking mechanisms, tablet hardness monitors, and thickness control systems. Advanced machines feature sophisticated rejection systems that automatically remove tablets that fall outside specified parameters. The automatic pill press functionality, as seen in models like the ZP-5B, includes built-in counting systems that help maintain accurate production records and ensure batch consistency.
Manufacturing Considerations
Production Scale Requirements
When selecting a tablet die press, manufacturers must carefully consider their production scale requirements. This involves analyzing factors such as batch sizes, production schedules, and throughput requirements. Small-scale operations might find single-station presses like the ZP-5B, with its 5-punch die configuration, perfectly suitable for their needs. The automatic pill press functionality and 60KN maximum pressure capability provide sufficient capacity for research and development work or small batch production. Larger operations need to consider rotary presses with multiple stations to meet higher volume demands while maintaining product quality standards.
Maintenance and Cleaning Protocols
Proper maintenance and cleaning procedures are essential for ensuring the longevity and reliable operation of tablet die presses. Regular maintenance schedules must be established for critical components, particularly those constructed from stainless steel and iron steel materials. This includes inspection of punch tips, dies, and compression rollers for wear or damage. Cleaning protocols must be developed and followed to prevent cross-contamination between batches and ensure compliance with GMP requirements. The design of modern tablet die presses incorporates features that facilitate easy cleaning and maintenance, reducing downtime and improving operational efficiency.
Regulatory Compliance Considerations
Meeting regulatory requirements is crucial in pharmaceutical manufacturing. Tablet die presses must be designed and operated in compliance with current Good Manufacturing Practice (GMP) guidelines. This includes proper documentation of operating procedures, maintenance records, and calibration data. The equipment must be capable of producing tablets that consistently meet quality specifications while maintaining the integrity of the manufacturing process. Modern tablet die presses incorporate features that facilitate compliance with regulatory requirements, including automated data collection systems and comprehensive audit trail capabilities.
Conclusion
The evolution of tablet die press technology has led to increasingly sophisticated and efficient manufacturing solutions. From basic single-station presses to advanced multi-layer systems, these machines continue to advance pharmaceutical manufacturing capabilities. Understanding the different types and features of tablet die presses is crucial for making informed decisions in pharmaceutical production.
Contact us today to discover how our tablet die press solutions can revolutionize your pharmaceutical manufacturing process. Our expert team is ready to help you select the perfect equipment for your specific needs, ensuring optimal production efficiency and product quality. Reach out to us at michelle@factopintl.com to explore our comprehensive range of pharmaceutical machinery solutions.
